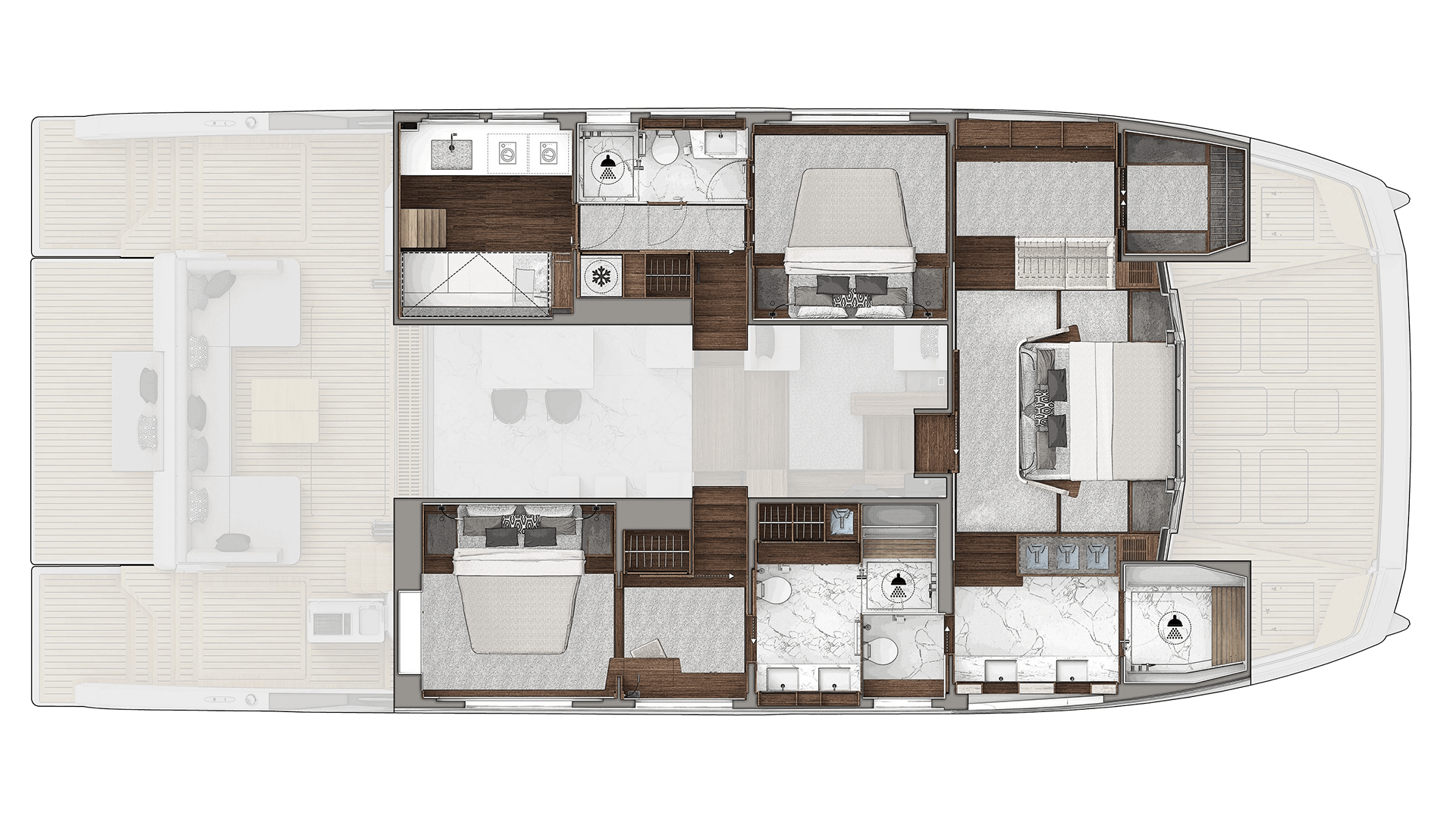

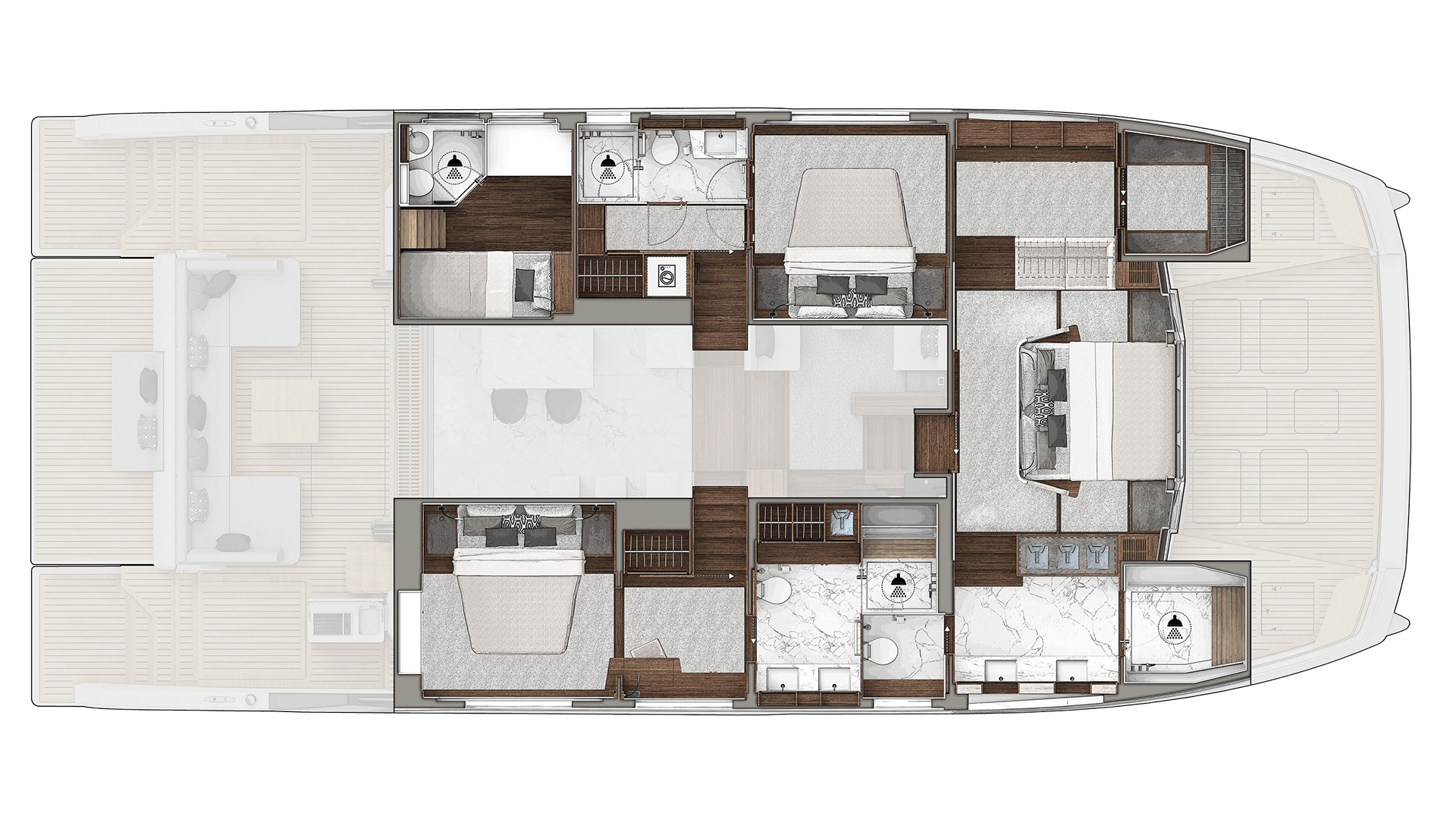

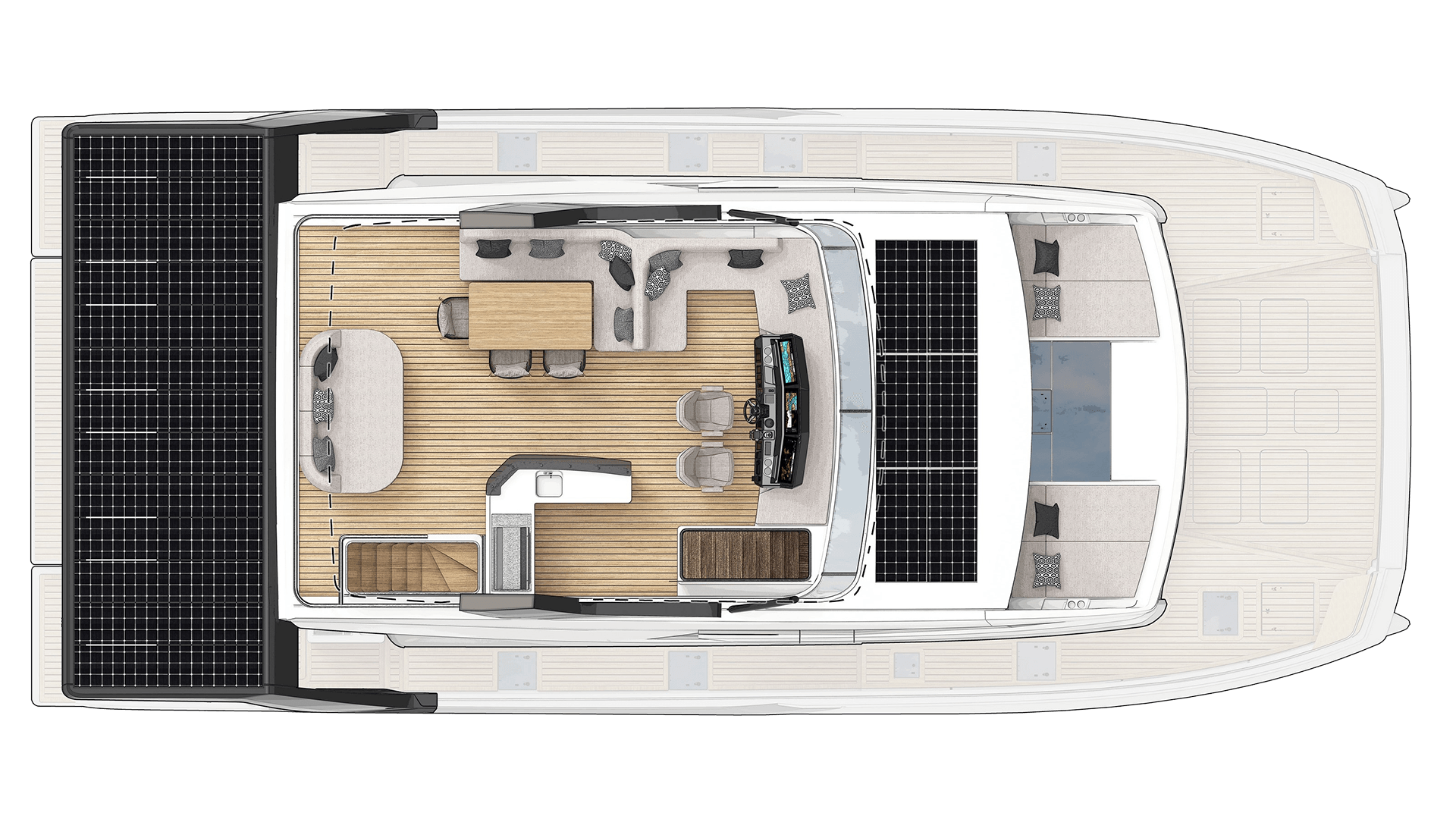

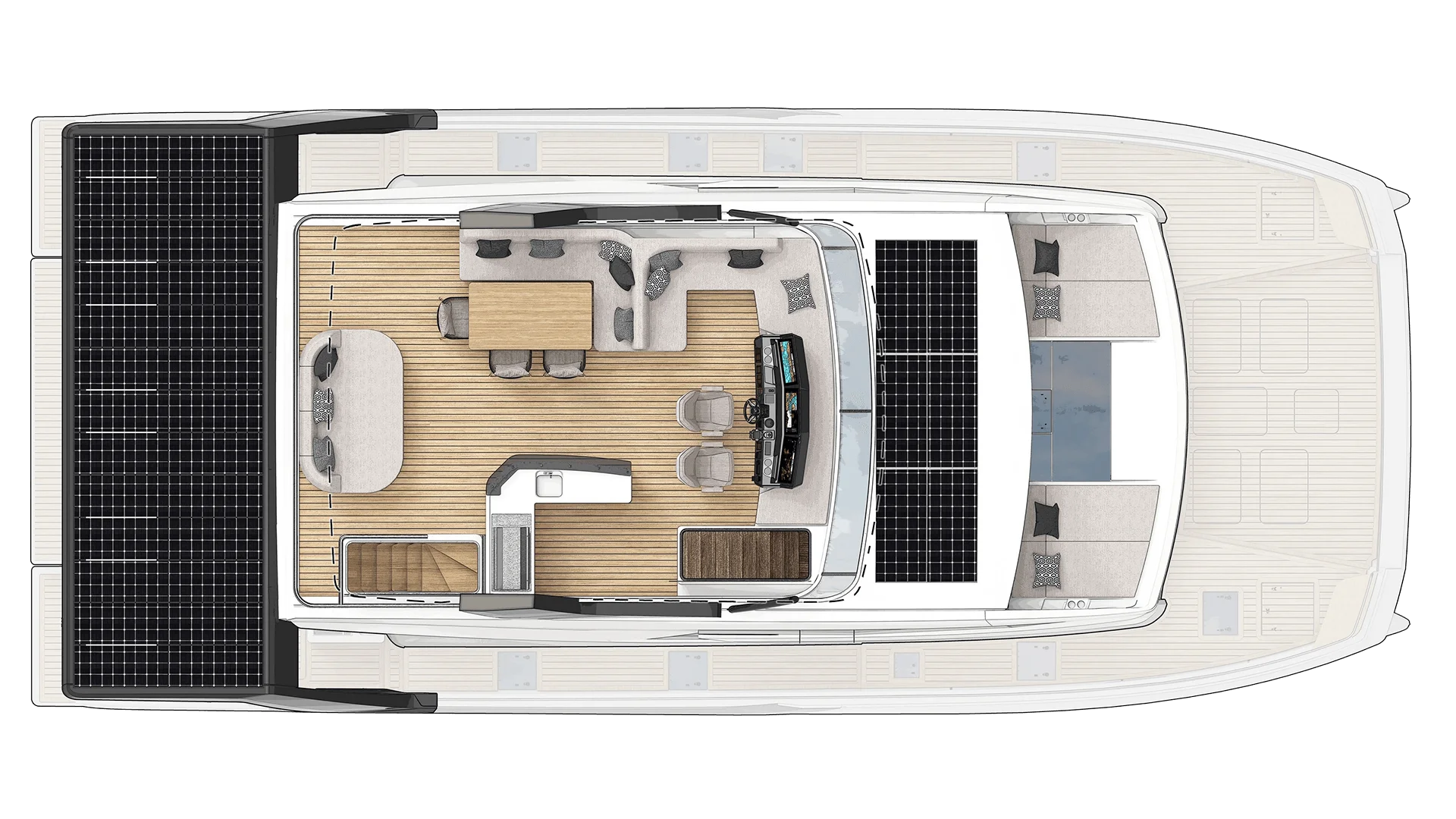

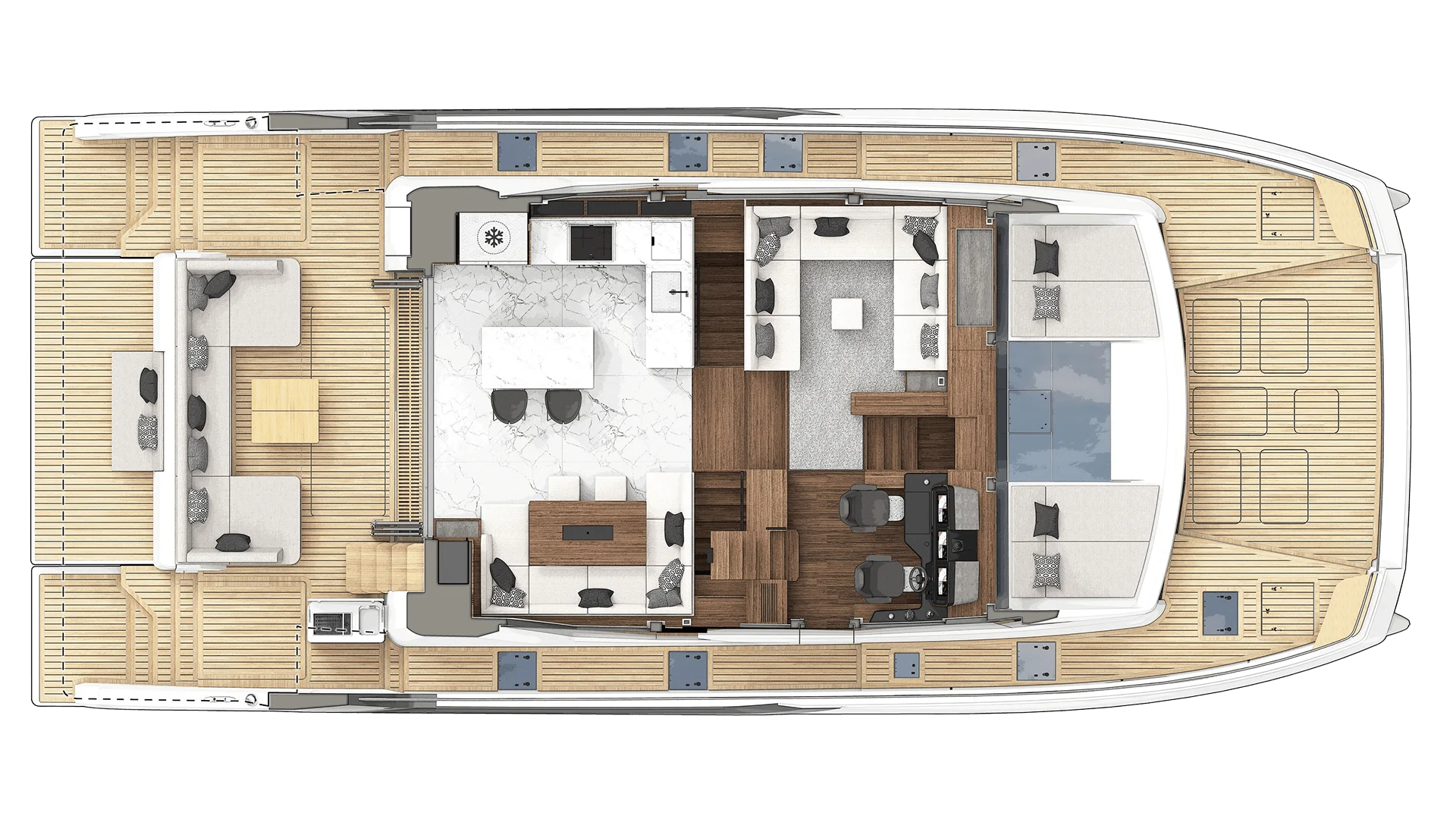

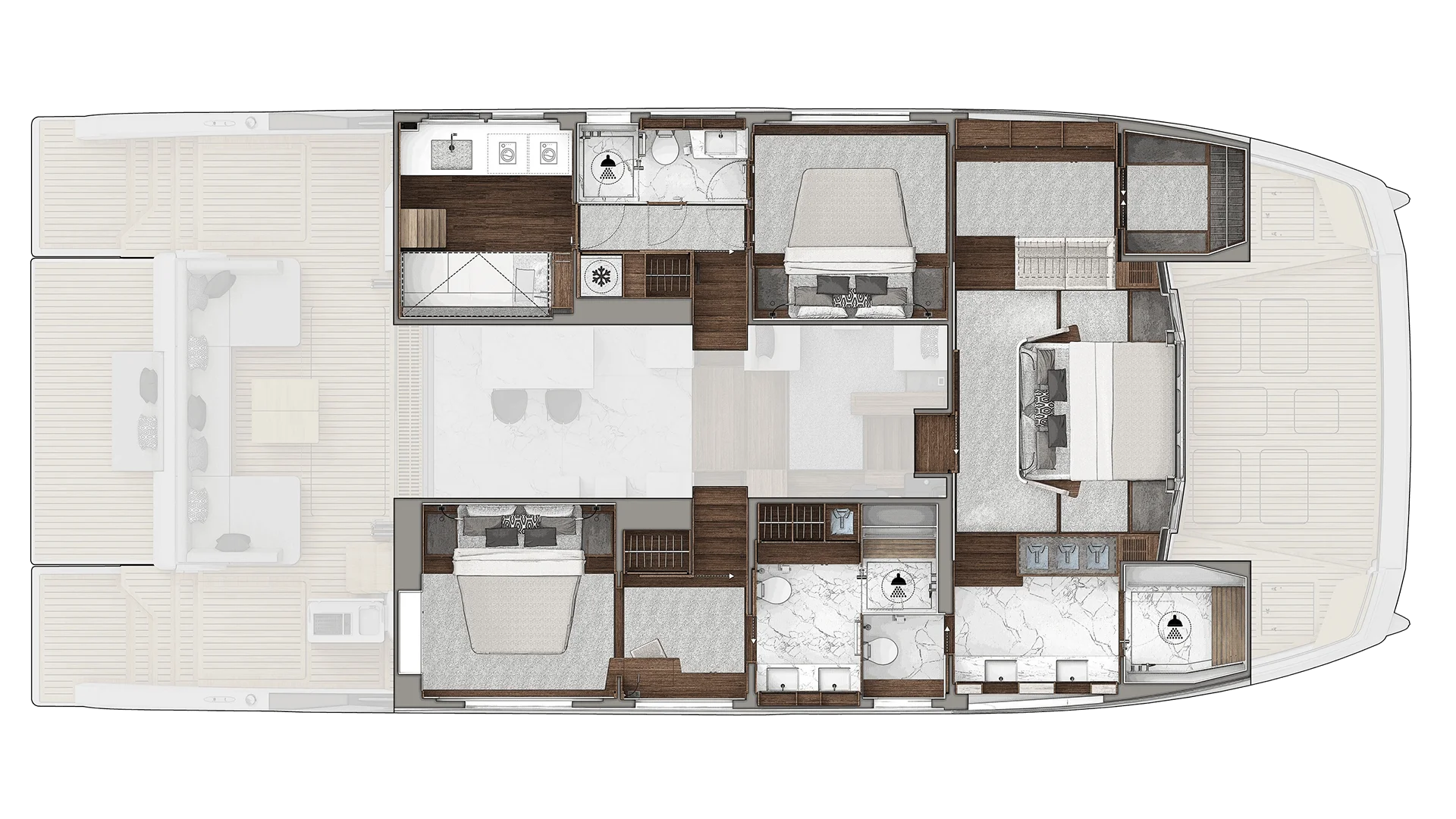

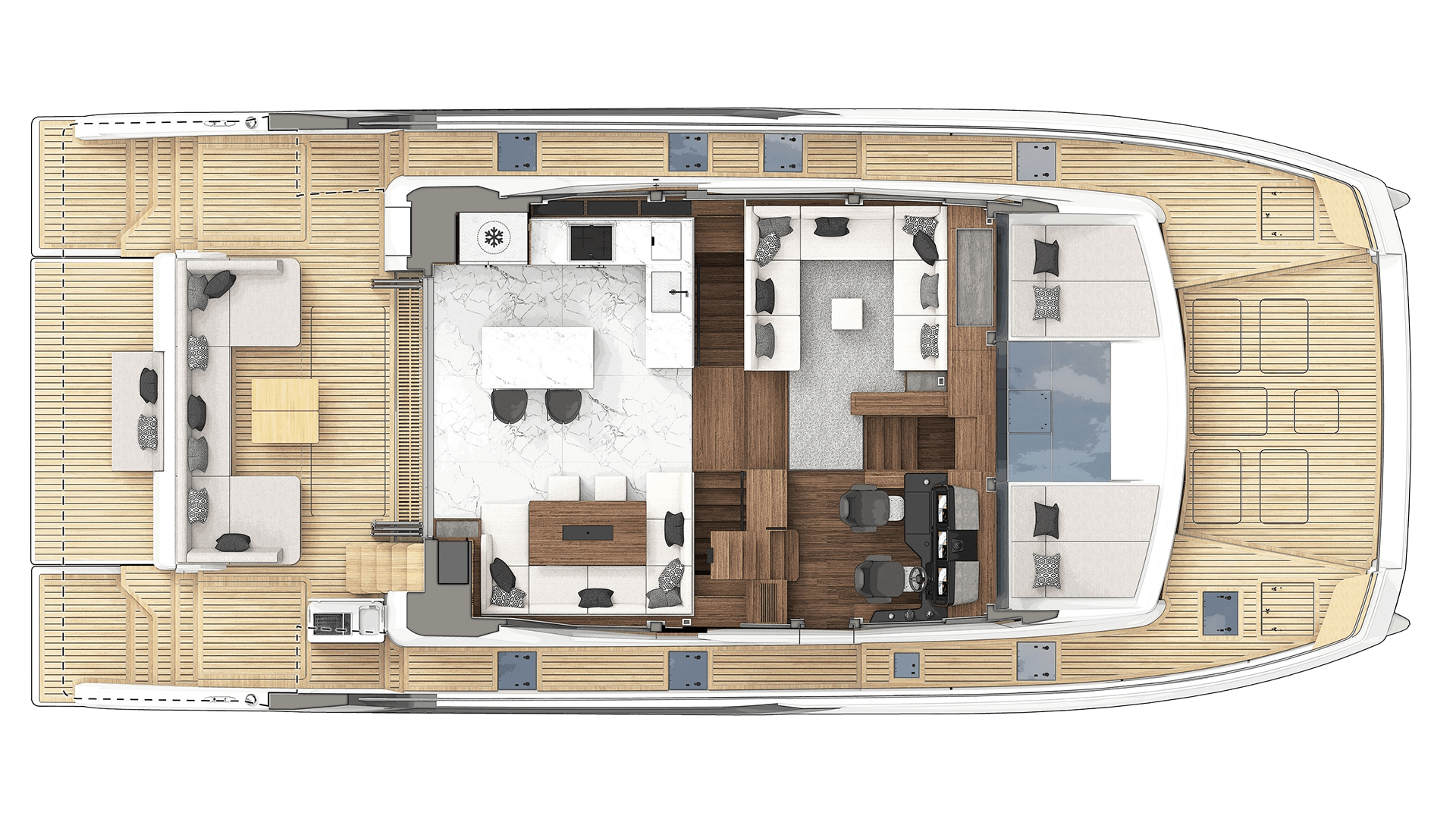

Sixty Solar Power – Layouts
Owner’s version
‘utility room’ instead of crew cabin
access both from inside and the cockpit
This version is dedicated for owner-operators, and the utility cabin has the laundry room with separate washer and dryer, tool cabinet, additional fridge/freezer space, pantry and more storage. There is still a fold down bunk over the workbench, for temporary crew or additional guest to sleep.
Sixty Solar Power – Styling Options
Sixty Solar Power – Specifications
Exterior & Accommodation
MAIN DIMENSIONS
Length hull 18.48 m / 60.63 ft Length overall 18.49 m / 60.66 ft Length waterline 18.11 m / 59.41 ft Beam 8.12 m / 26.64 ft Draft with Hybrid Propulsion, shaft drive 1.19 m / 3.9 ft Draft with IPS 1.15 m / 3.77 ft Bridge Deck Clearance 1.05 m / 3.45 ft Standard propulsion Engines * 2x Volvo D8-IPS700 (450 Hp) Optional Hybrid Propulsion ** 2x Yanmar 6LY (440 Hp) + 2x 134 Hp eMotion electric engine Fresh Water capacity 860 Litres / 227.19 gal Black Water 430 Litres / 113.59 gal Standard Fuel Tanks * 3690 Litres / 974.79 gal Classification CE_Category A Displacement Lightship 38 t (approx) / 83 776 lb HULL
Hull standard Gelcoat colour is white plus painted targa. * For osmosis protection an ISO / NPG Gelcoat is used Hull glass with ceramic borders providing UV protection on the bonding areas with opening port holes in selected panels for extra ventilation. Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps. Integrate Targa wing with painted finished (Standard colour combination; MIDNIGHT GRAY) and recessed solar panels * DECK AND SUPER STRUCTURE

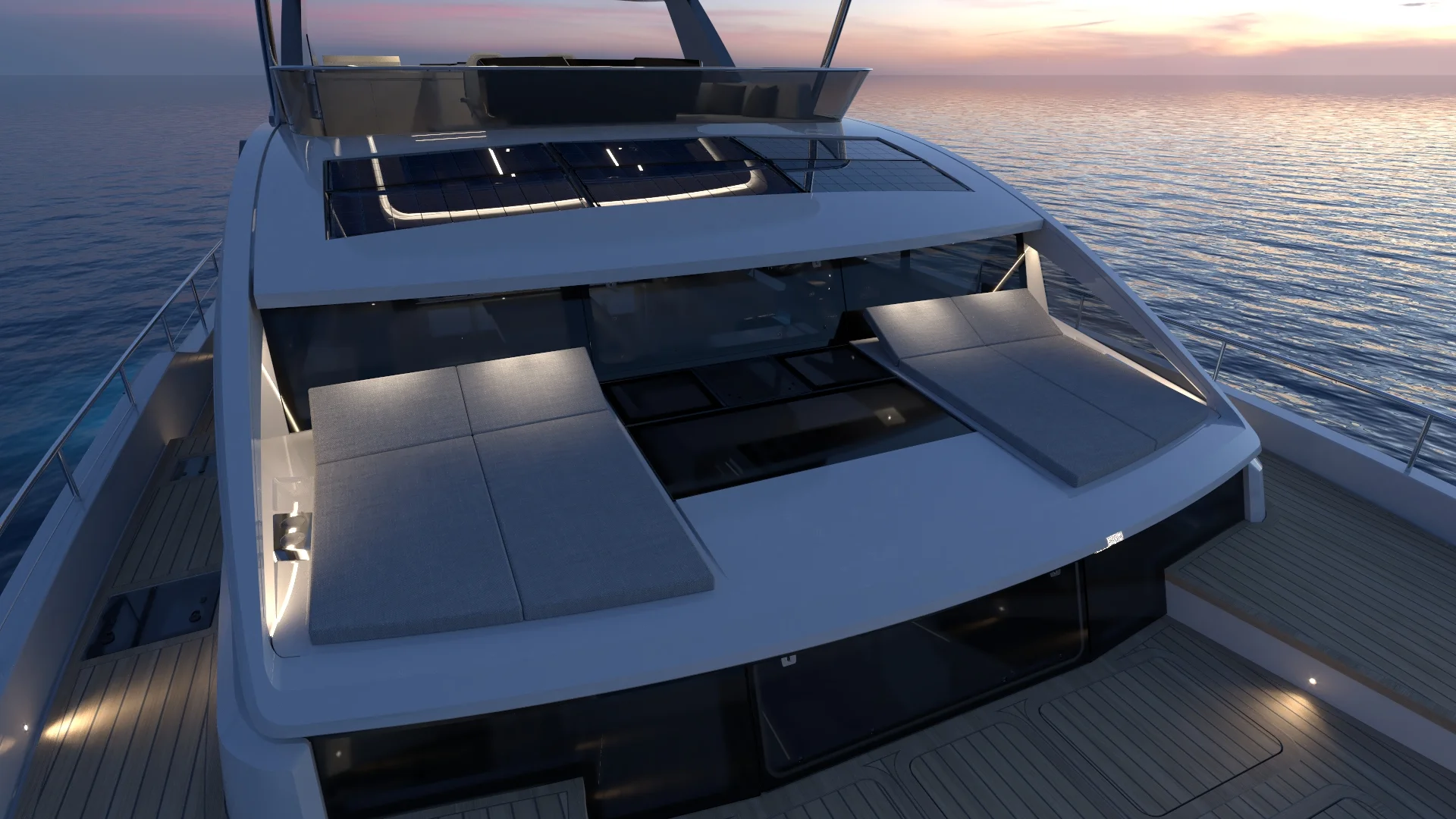

The deck surface on the foredeck area above the master cabin has a moulded patterned non-slip finish, while the rest of the deck is fitted out with high quality artificial Teak Decking. Deck and super structure standard Gelcoat colour is white plus painted hardtop. * Flush deck hatches for ventilation. Skylight windows above master cabin. Large forward facing windows for saloon and master cabin. Forward central windows in saloon and master cabin are electrically opening hatches. Large side cabin windows for saloon area. Fore deck hatches for storage with recessed and lockable stainless steel catches including stainless steel gas struts to hold hatch in the open position. Dedicated windlass and anchor lockers with fresh water deck wash. Large access opening deck hatches on port and stbd foredeck peak gives access to white topcoated locker with access ladder and splashproof 110V outlet. Solid tubular stainless steel side railings with middle stainless steel wire includes pull-pits with Teak seats. Lounging area in front of forward facing saloon windows. * Tow rail is incorporated into the deck as a raised gunnel section with a draining gutter running forward aft. Recessed solar panels on upper part of super structure. Fuel fillers port and stbd, two on each side. Eight stainless steel mooring cleats with 1 x pop-up type cleat on transom. Fresh water fillers port and stbd. Side pantograph type entrance door at main helm position. COCKPIT

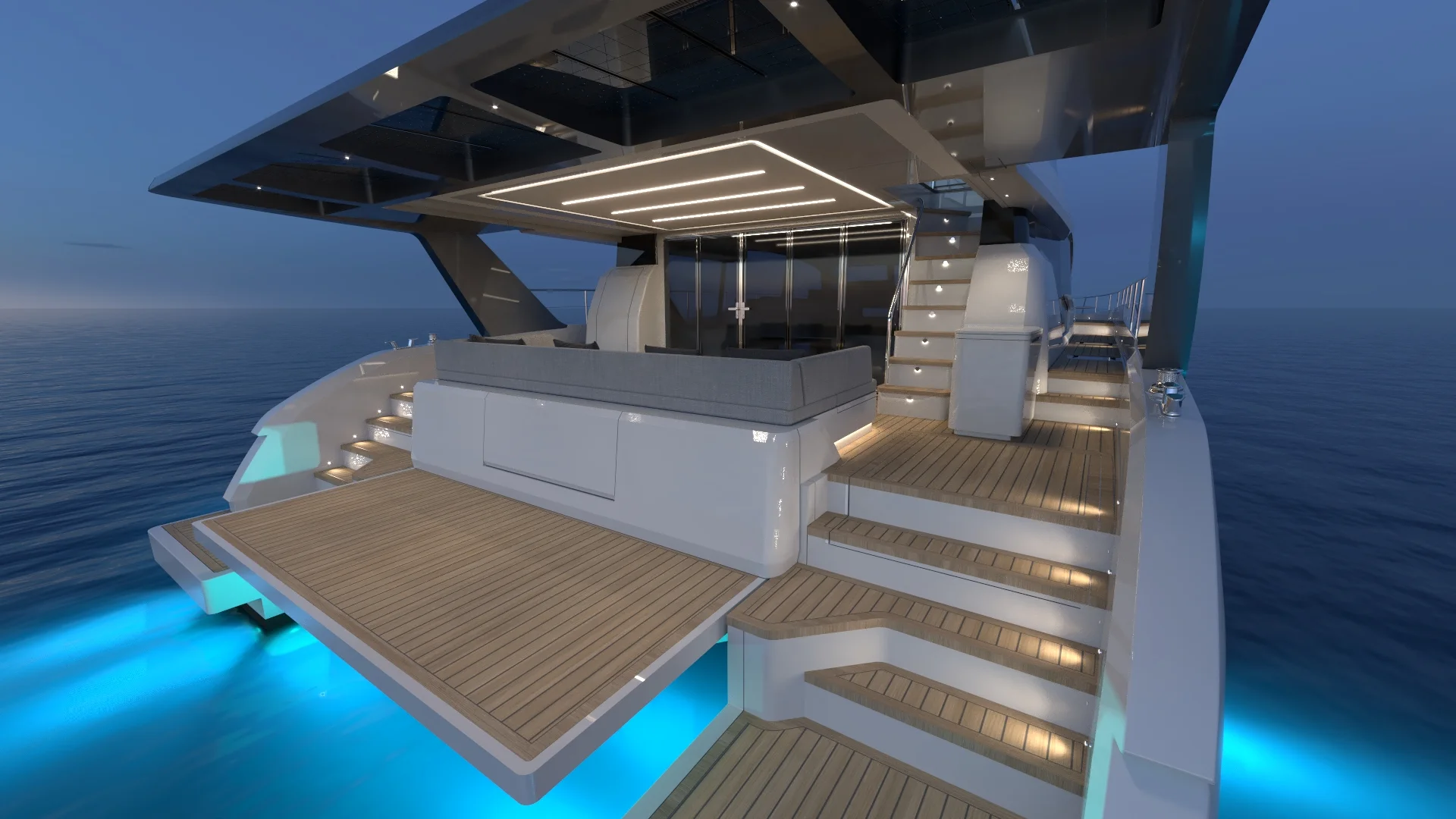

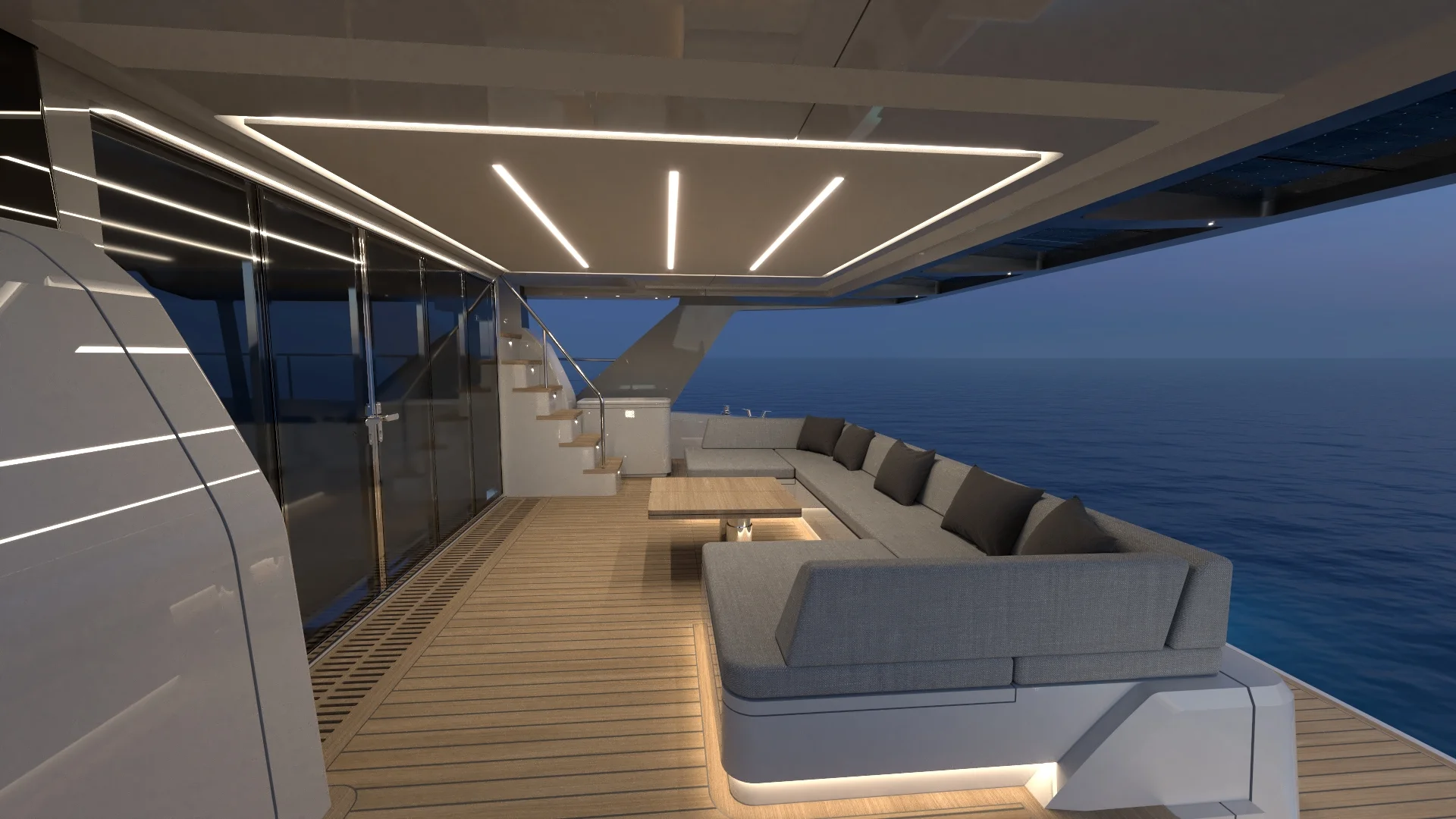

The cockpit floor surface is fitted out with high quality artificial Teak Decking. The cockpit area are self draining. Large, recessed cockpit well grating in front of companionway door. Moulded staircase with artificial teak steps to flybridge. Stern seating with luxury cushions, storage underneath and splash proof 110V outlet. Teak cockpit dining table with world map on fixed pedestals. * Teak cockpit foldable dining/coffee table on electric pedestals that can also be converted into a bed. ** Dimmable overhead lighting. Dimmable floor level courtesy lighting in blue. Dimmable floor mood lighting. Four cockpit speakers. Large access hatch in floor to battery compartment.* Large lockable folding companionway doors gives access to the saloon. Large deck hatches with recessed and lockable stainless steel catches including stainless steel gas struts to hold hatch in the open position, gives access to the engine rooms. Entrance door to utility room/crew cabin. Wet bar with storage, splash proof 110V outlet, build in electrical grill and sink. * Build in drinks fridge in cockpit wet bar. ** Fresh water deck wash. Full cockpit enclosure with mesh and canvas windows. TRANSOM AREA
The transom steps and dive platform are fitted out with high quality artificial Teak Decking. The large hydraulic operated dive platform with override can also be used for storing the tender and have a lifting capacity of 600kg. (size 4.1m x 1.68m / 13.45ft x 5.51ft) Tender; Williams Sportjet 395 ** Tender; AB ALX15 + Yamaha F-60 outboard and Carbon Davit. ** Large water Toy Garage with electrically operated door with incorporated folding seat are situated on the back of the stern seating module.* Fitted inside Toy Garage, Dive Compressor pre-install. ** Fitted inside Toy Garage, Full scuba package with dive compressor and 6 dive bottles. ** Dimmable low level courtesy lighting in blue for all steps. Overhead shower with hot and cold water incorporated into Targa. Handheld pop up shower with hot and cold water. Electrical shore power connection sockets. Shore water connection with pressure reduction valve. Wide retractable stainless steel bathing ladder with handrails on port stern. Spectra rope with pelican clip, retractable aft gates. Navigation stern light fitted on back of Targa. FLYBRIDGE

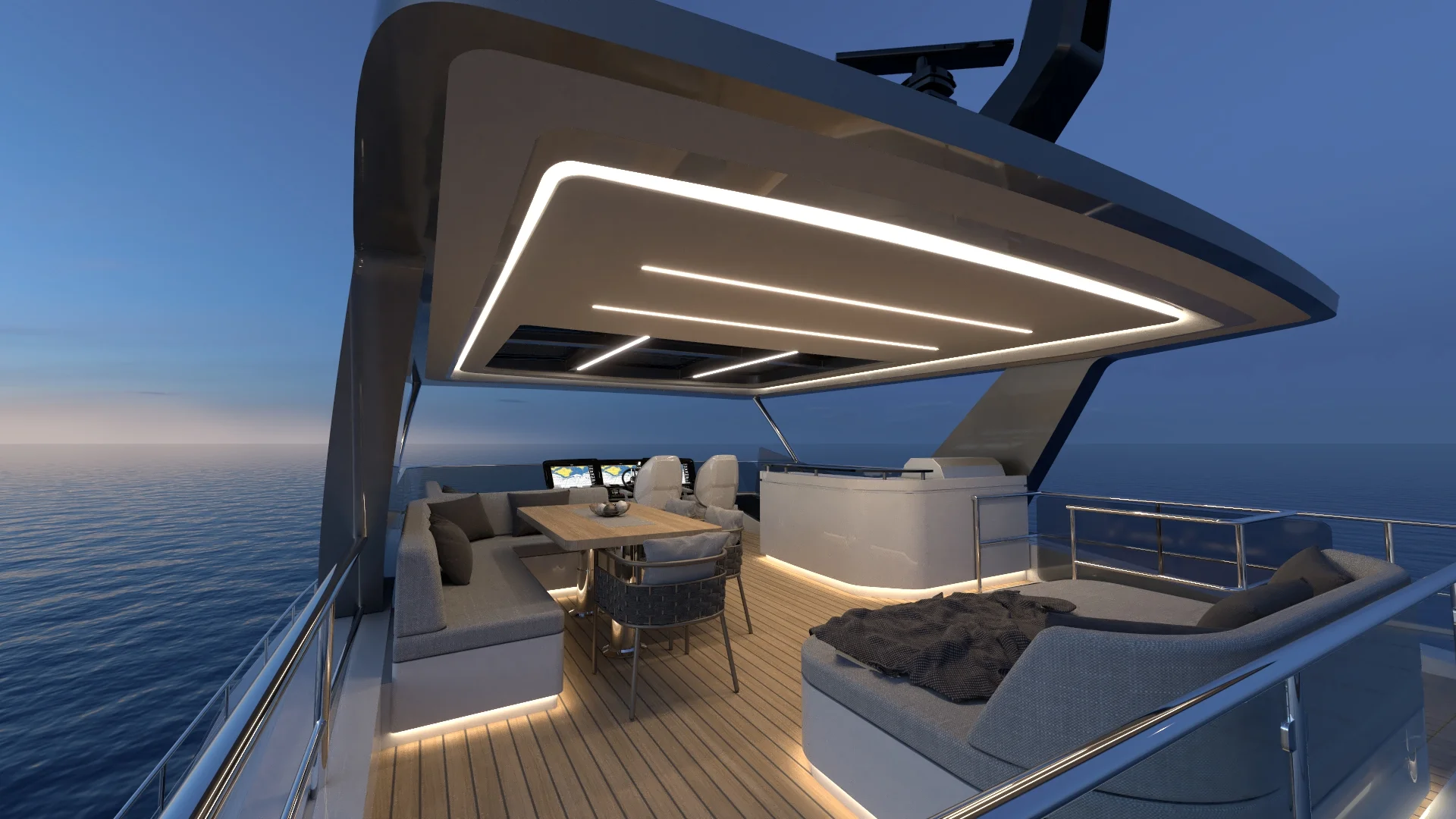

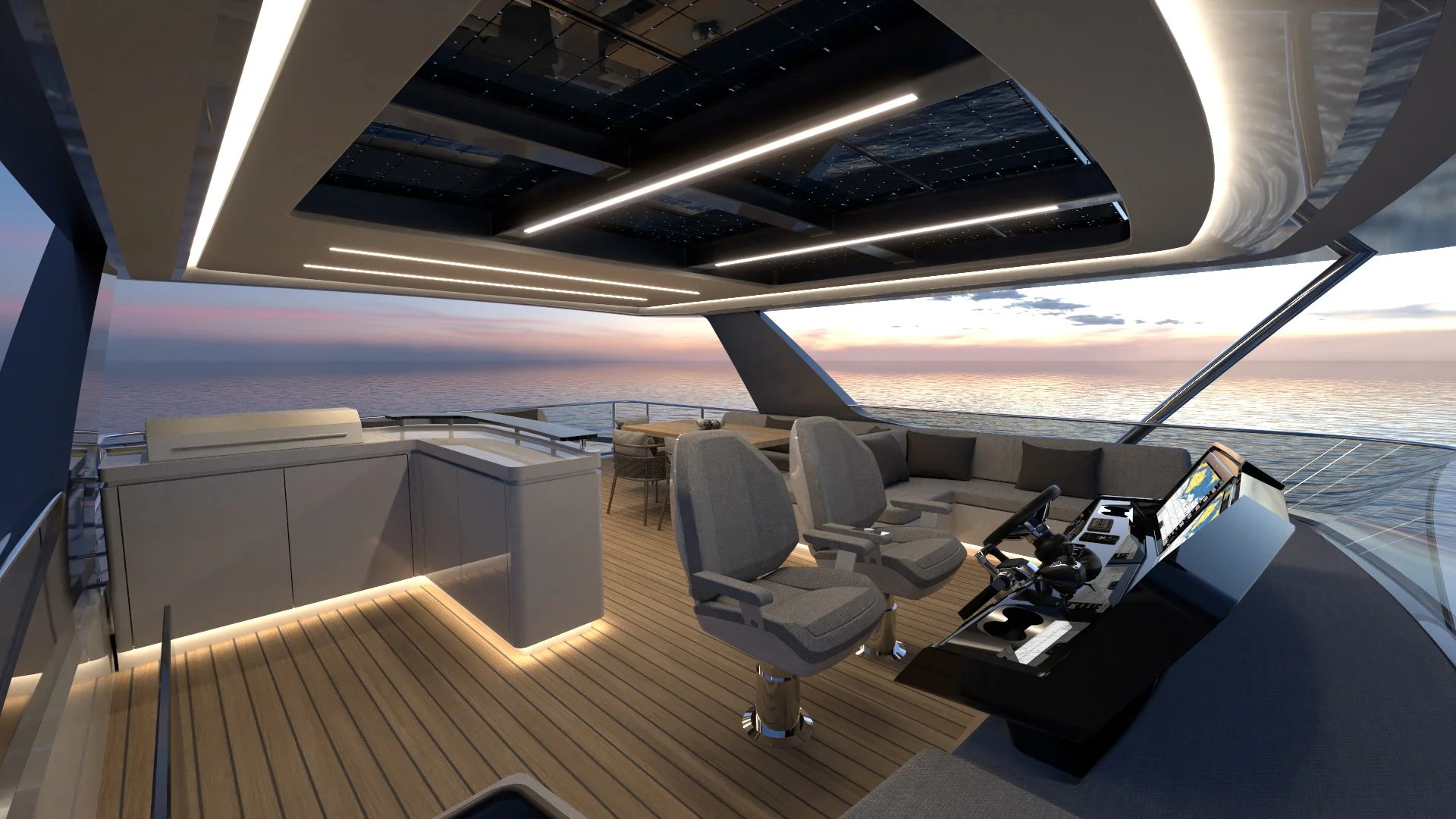

The flybridge floor surface is fitted out with high quality artificial Teak Decking. The flybridge area are self draining. Stylish hardtop with painted finish. * Instrument tower fitted on hardtop. Integrated into the hardtop is fold down soft enclosure side for entire flybridge area. Overhead dimmable lighting including red lighting for night navigation. Deflecting spray screen. Four waterproof speakers. Stern seating and sunbathing area with luxury cushions and storage underneath. Stainless steel guard rails and grab rails Forward seating groups next to the helm station. Dining area seating with teak dining table on fixed pedestals. * Teak foldable dining/coffee table on electric pedestals that can also be converted into a bed. ** Access hatches and stairs to cockpit and saloon. Galley area with ample counter space, storage cupboards, splash proof 110V outlet, drinks fridge, large build in electric grill with lid and a sink. * Two adjustable helm seats. Fresh water deck wash. Centrally mounted in the front is a instrument module with the following equipment: - 3x 24” Simrad chart plotter displays

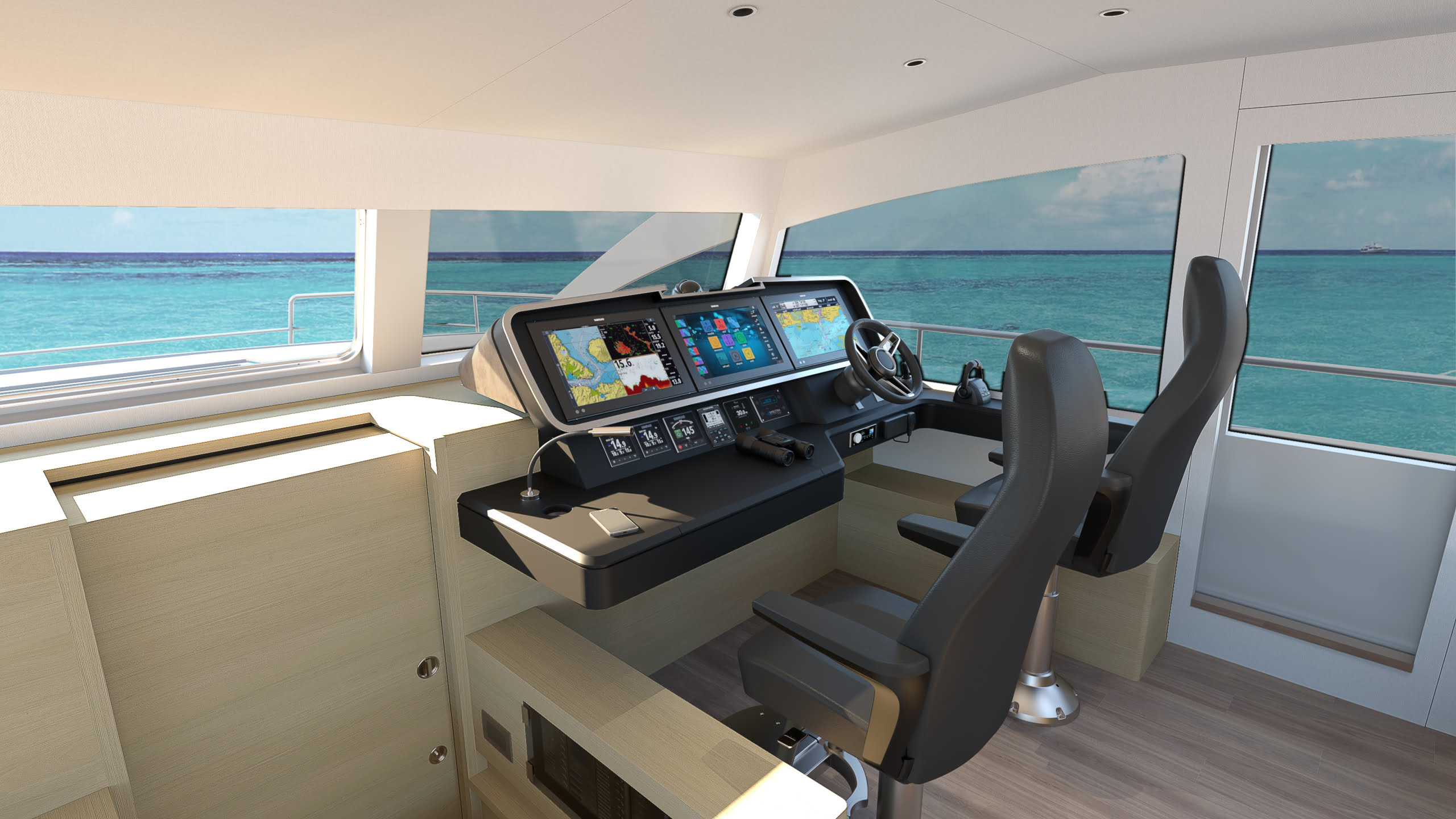

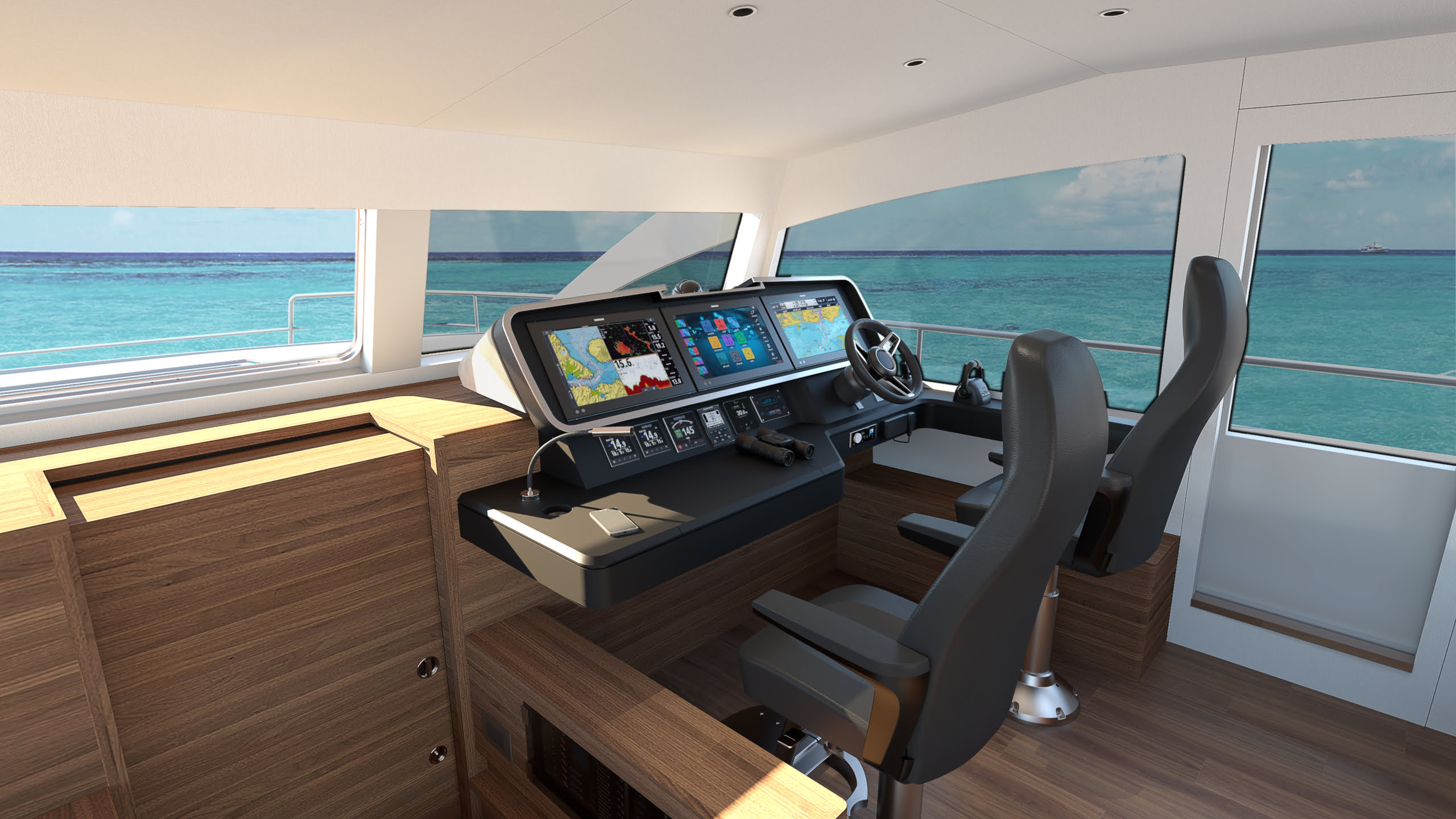

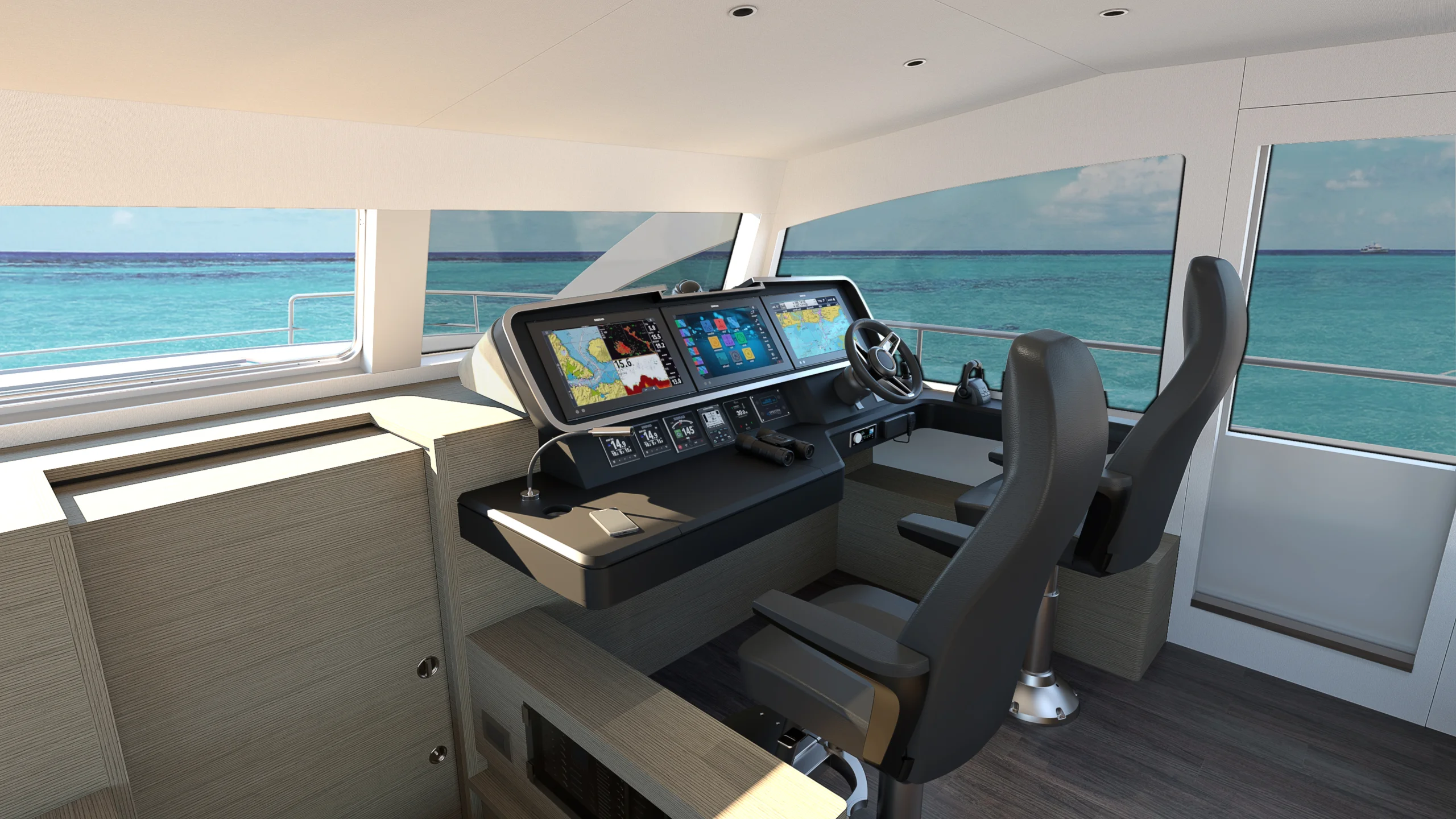

- Simrad display remote controller
- 2x Simrad IS42 digital display
- Chain counter
- Fireboy automatic fire extinguisher panels for engine rooms X2
- Compass
- Autopilot control
- Interceptors controls
- Secondary VHF radio
- 2x Double drink cup holder
- Wireless phone charging
- USB and 12v sockets
- Custom switch panel with battery parallel
- C-Zone Touch 5
- Steering wheel
- Engine and joystick controls
- Bow and stern thruster controls (only standard with Optional Hybrid Propulsion)
INTERIOR FINISHES
All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials. All cupboard locker doors and drawers fitted with stylish catches in satin chrome finish. All cupboard locker doors and drawers fitted with soft close hinges and drawer slides. All Veneer and solid wood are varnished for a professional and durable finish. Interior of all cupboards where possible have lined or painted surfaces. Ceilings and topside linings in soft touch luxurious vinyl furnishings. Laminated vinyl flooring throughout living areas and have loose fitted carpets in cabins and saloon. Engineered Stone flooring are used for bathroom and galley areas. Cabin mattresses is multilayer foam with several densities covered with fabric. Basin units, basins and galley tops made from Solid Surfacing and Engineered Stone. SALOON

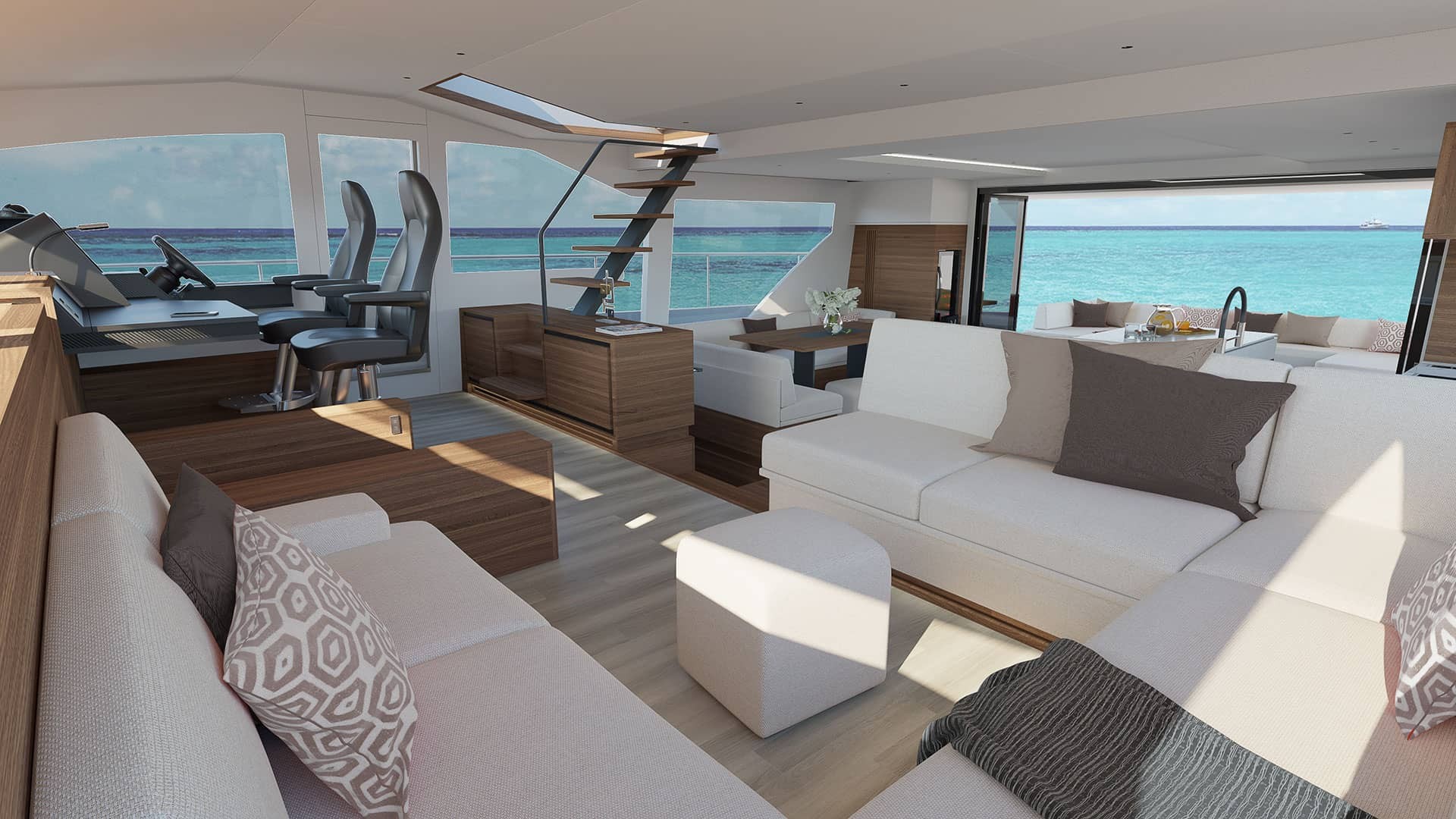

Large saloon area with 360 degree panoramic view Central forward facing window is a electrically operating hatch that can be opened for ventilation in saloon area Laminated vinyl flooring with loose fitted carpet. U-shaped settee with cloth upholstery Loose Ottomans provides extra seating, the possibility to create a bed, be converted into a coffee table and also have dedicated storage for the Ottoman and coffee tray when not in use. Electrically operated blinds for saloon cabin windows Storage compartments under saloon seating The saloon ceilings are covered in hi quality vinyl with recessed LED downlights. Recessed overhead LED lighting. LED mood lighting. Light switches to operate and dim light output Various 110V AC outlets. USB charging ports incorporated with 110V AC outlets in strategic areas. The area is airconditioned by a individual air handler. The 50″ TV is fitted on a electrical lift that is able to rotate for better viewing angles. Four speakers with one subwoofer. GALLEY
Galley in main saloon to Port with direct access to cockpit Recessed overhead LED lighting. LED mood lighting. Light switch and dimmer for overhead lighting Engineered Stone flooring throughout galley area. L-Shape counter top in Engineered Stone with induction stove tops, under counter rubbish bins, single sink, chromed professional mixer tap and drinking water tap. Behind the induction stove tops is some extra storage compartments on the outboard side below the cabin window Above the stove tops is upper level storage with a build in extraction hood and recessed overhead LED lighting. Bosch Convection microwave oven and Bosch dishwasher fitted in L-Shape galley unit with storage on both sides and multiple drawers, including a small “sponse compartment” Galley island unit with large storage, multiple drawers and Engineered Stone counter top. Build in, Bosch home style, side by side fridge/freezer with build in ice maker and water dispenser Electrically operated blinds for cabin windows Numerous 110v outlets Fire extinguisher and Fire Blanket is fitted in the cupboard. DINING AREA
Dining area in main saloon to STBD with direct access to cockpit U-shaped settee with cloth upholstery Storage compartments under saloon seating Large dining table with central storage compartment. Recessed overhead LED lighting. LED mood lighting. Light switch and dimmer for overhead lighting Engineered Stone flooring throughout dining area. Electrically operated blinds for cabin windows Numerous 110v outlets The area is airconditioned by a individual air handler. Next to the companionway door is a unit with a wine cooler and low level storage drawer. * Coffee Bar with low level storage drawer place of the wine cooler next to the companionway door. ** Fitted above the wine coolers is a C-Zone Touch 7 screen for control of the electrical systems. MAIN HELM
Large windows gives good all round visibility Electrically operated blinds for cabin windows Navigation table with under desk organiser that includes electrical outlets and USB charging ports Navigation table top has one wireless charging station, chart light and two cup holders Two leather covered adjustable helm seats with foot rest Leather covered steering wheel Engine controls Joystick controls (Standard with Volvo IPS only) Overhead dimmable lighting including red lighting for night navigation The floor is covered with wood finish vinyl flooring The area is airconditioned by a individual air handler. Side door for easy access to the deck Staircase with wood finish steps gives access to the flybridge area thought a large deck hatch Side unit with electrical switch panels Storage cupboards to the back of the helm area Mounted in a practical and neat arrangement into a stylish and modern dashboard are the below mentioned equipment: - 3 x 19” Simrad Chart plotters
- Simrad display remote controller
- 2x Simrad IS42 digital display
- Fireboy automatic fire extinguisher panels for engine rooms
- Compass
- Autopilot control
- VHF radio with AIS 800 transceiver
- Fusion Apollo 770 multizone music system
- Schenker water maker control
- Custom switch panel with battery parallel
- C-Zone Touch 5
- Bow and stern thruster controls (only standard with Optional Hybrid Propulsion)
MASTER CABIN
Bedroom area: - Access to the large master cabin is from the forward saloon area through a sliding door.
- Large forward facing windows gives good visibility.
- Central forward facing window is a electrically operating hatch that can be opened for ventilation.
- Electrically operated blinds for cabin windows
- Large 2,1m x 1.8m bed, soft furnished headboard with reading lights and 110V plugs on both sides of the bed.
- Large long term storage under the bed top with drawers all-round.
- Overhead is a opening deck hatch for ventilation and skylights for extra light.
- Combination shade-mosquito screens for opening deck hatch and skylight.
- Overhead recessed ceiling lights, all LED
- LED mood lighting.
- Light switch for cabin lights
- Laminated vinyl flooring with loose fitted carpet.
- The area is airconditioned by two individual air handlers.
- Wireless charging stations and 110v outlets.
- Settee unit to port side.
- Storage unit to stbd side.
Dresser area (Port): - Overhead recessed ceiling lights, all LED
- LED mood lighting.
- Light switch for cabin lights
- Laminated vinyl flooring with loose fitted carpet.
- Overhead is a opening deck hatch for ventilation
- Combination shade-mosquito screens for opening deck hatch
- Large hull windows with in glass opening porthole.
- Electrically operated blinds for cabin windows
- Outboard lower storage drawers and upper level storage lockers.
- Inboard side hanging wardrobe/storage lockers.
- 110V outlet.
- Access into the walk in wardrobe is through two louvered sliding doors.
- The inside of the walk in wardrobe have multipole storage lockers, countertop areas, drawer and ample hanging space.

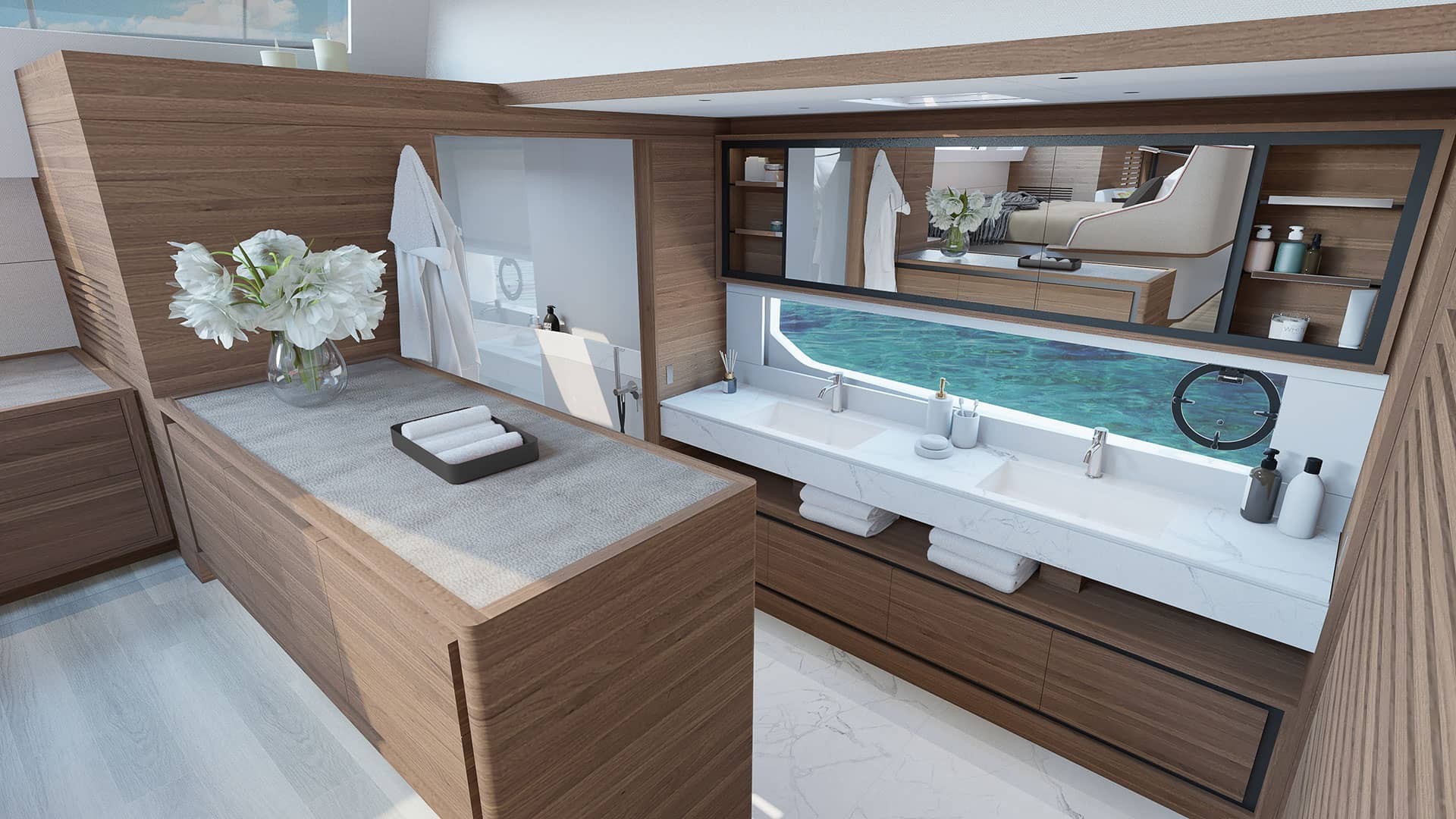

Bathroom basin area (Stbd): - Overhead recessed ceiling lights, all LED.
- LED mood lighting.
- Light switch for cabin lights
- The floor is fitted out with Engineered Stone.
- Overhead is a opening deck hatch for ventilation.
- Combination shade-mosquito screens for opening deck hatch.
- Large hull windows with in glass opening porthole.
- Electrically operated blinds for cabin windows.
- Undermounted He’s and Her’s wash basins in a Engineered Stone top.
- Large storage drawers under the basin top.
- Splash proof 110V outlets at the basins.
- Overhead mirror door vanity unit with glass shelfs.
- On the inboard side is more storge lockers.
- Access to the master bathroom is through a lockable cabin door.
- Large solid surfacing counter top with integral basins with hot and cold mixer tap.
- Basin unit with large drawers including a small dustbin in one of the drawers.
- Towel rail fitted below basin top.
Bathroom shower area (Stbd): - Access to the purpose designed shower is through a glass shower door with a custom sandblast vinyl design.
- Overhead recessed ceiling lights, all LED
- The shower has a Engineered Stone floor with hidden drain.
- Engineered stone is also used on the walls to give the shower a very elegant look.
- Engineered stone shelfs on both inboard and outboard sides gives ample surface space for storage.
- Aft of the hull window is a full length storage cupboard.
- Duel purpose vanity type unit on the inboard side give easy access to equipment installed behind.
- Fold down seat in the forward side of the shower
- Overhead is a opening deck hatch for ventilation.
- Combination shade-mosquito screens for opening deck hatch.
- Shower mixer with diverter for hand shower and overhead rain shower.
- Towel rail.
Bathroom toilet area (Stbd): - Overhead recessed ceiling lights, all LED
- Light switch for cabin lights
- The floor is fitted out with Engineered Stone.
- Overhead is a opening deck hatch for ventilation.
- Combination shade-mosquito screens for opening deck hatch.
- Large hull windows with in glass opening porthole.
- Electrically operated blinds for cabin windows.
- Large storage drawers at lower level with counter space.
- Overhead mirror door vanity unit with glass shelfs.
- Fresh water flush electric toilet with soft closing lid.
- Towel rail and toilet roll holder.

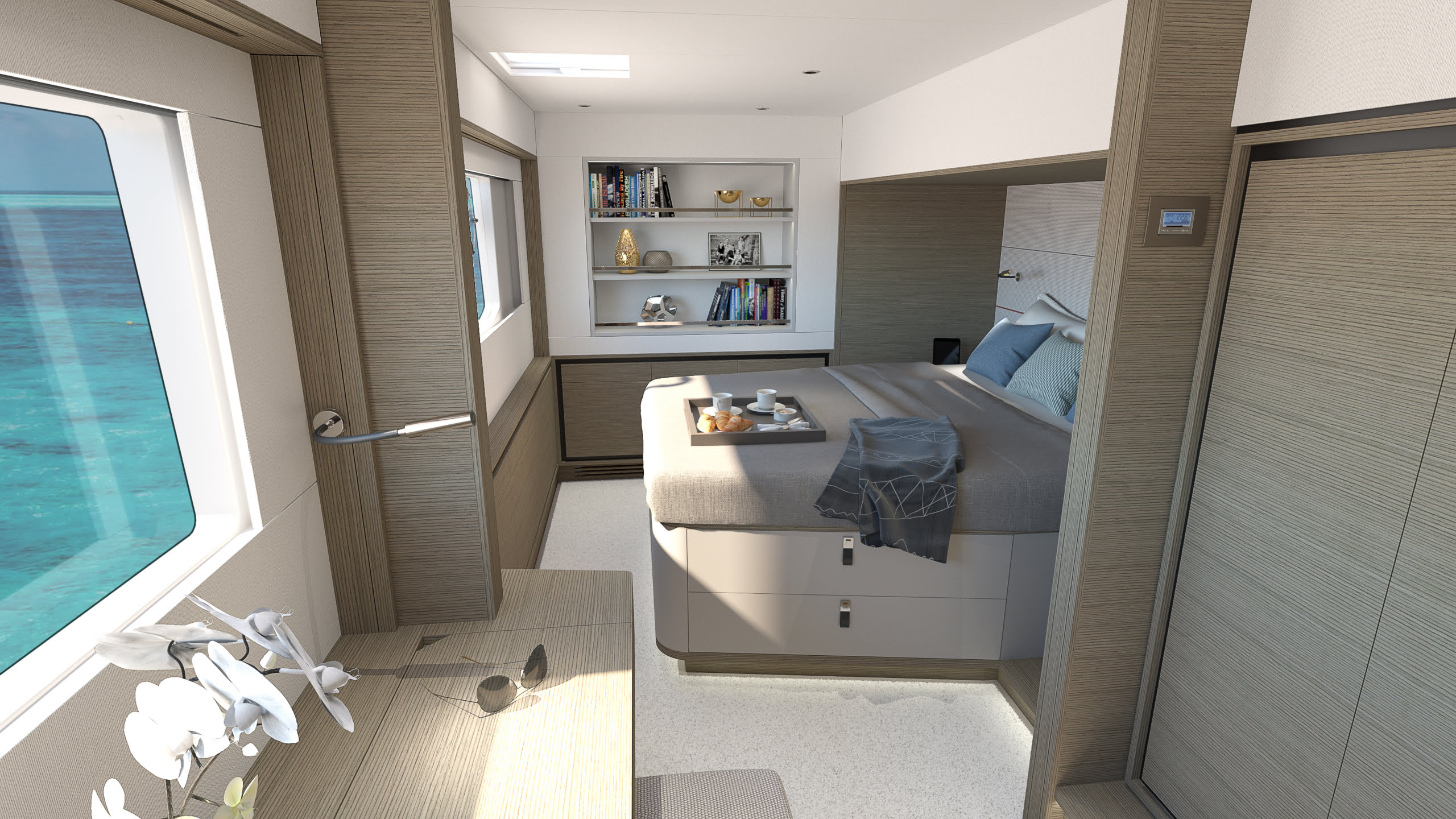

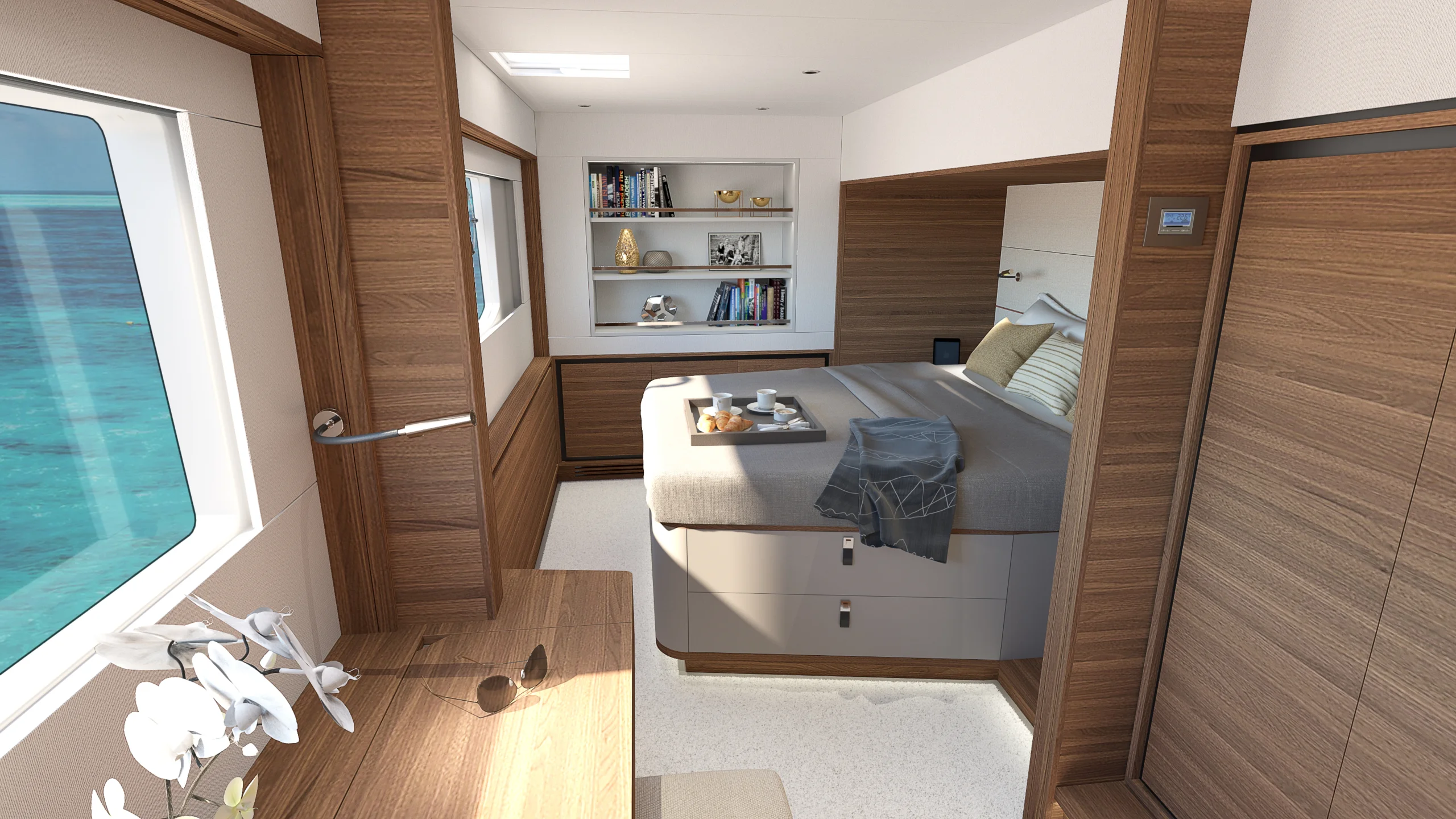

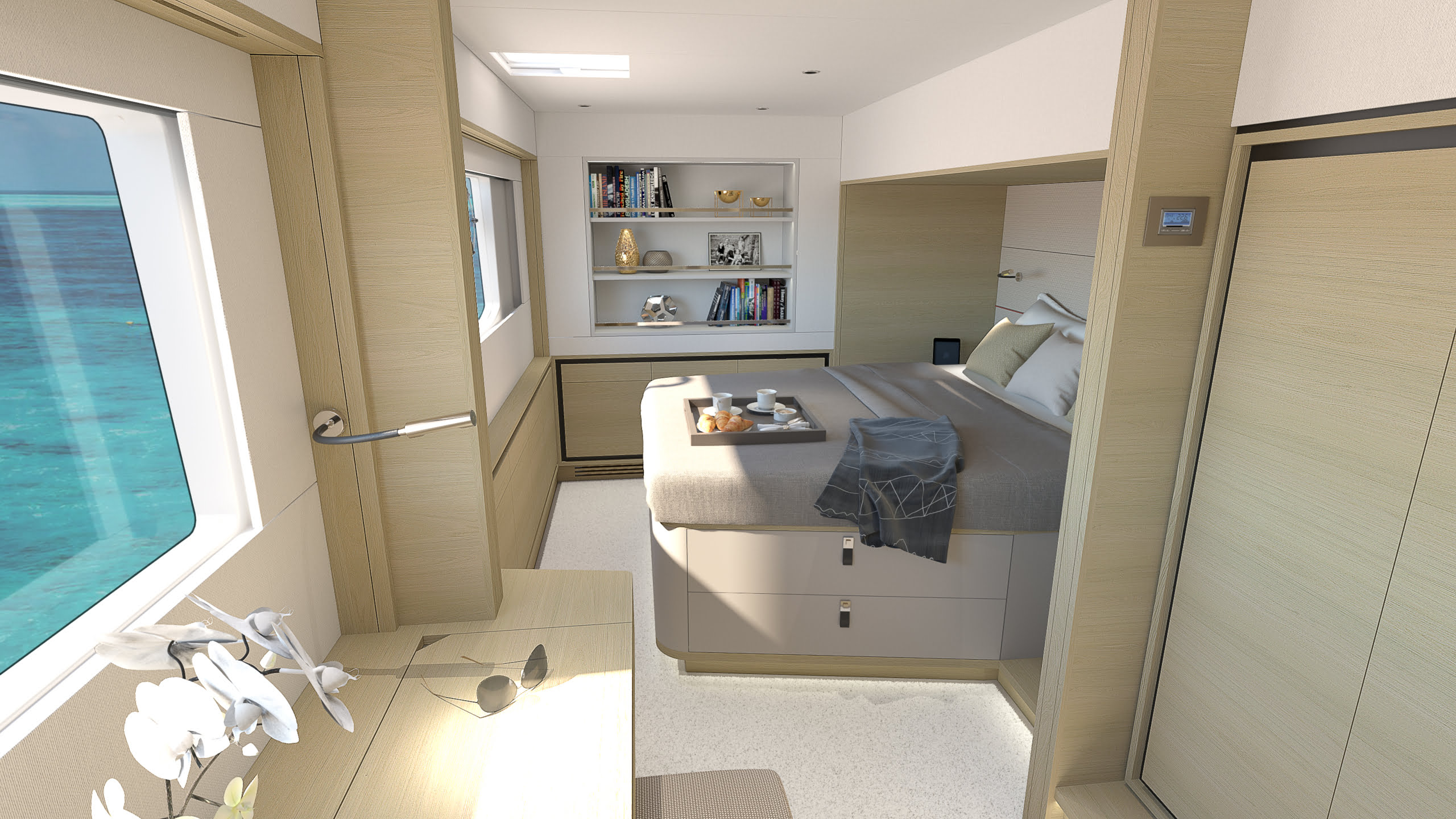

VIP GUEST CABIN
Bedroom area: - Access to the VIP guest cabin is from the stbd hull steps in the saloon area through a sliding door.
- Large hull windows with in glass opening porthole.
- Electrically operated blinds for cabin windows
- Large 2m x 1.6m bed, soft furnished headboard with reading lights and 110V plugs on both sides of the bed.
- Bed side table units with drawers on both sides of the bed.
- Large long term storage under the bed top with drawers on the side.
- Overhead is a opening deck hatch for ventilation and skylights for extra light.
- Combination shade-mosquito screens for opening deck hatch and skylight.
- Overhead recessed ceiling lights, all LED
- LED mood lighting.
- Light switch for cabin lights
- Laminated vinyl flooring with loose fitted carpet.
- The area is airconditioned by a individual air handler.
- Wireless charging stations and 110v outlets.
- Storage drawers and open storage shelfs with fiddles on aft side of cabin. *
Dresser area: - Overhead recessed ceiling lights, all LED
- LED mood lighting.
- Light switch for cabin lights
- Laminated vinyl flooring with loose fitted carpet.
- Overhead is a opening deck hatch for ventilation
- Combination shade-mosquito screens for opening deck hatch
- Large hull windows with in glass opening porthole.
- Electrically operated blinds for cabin windows
- Outboard dresser unit with desk organiser, mirror, 110V outlet and adjustable light.
- Lower level storage locker and drawers forward of dresser.
- Ottoman for dresser table.
- Inboard side hanging wardrobe/storage lockers.
- En Suite bathroom.
Bathroom and toilet area: - Sliding door gives access to the bathroom area.
- Overhead recessed ceiling lights, all LED.
- Light switch for cabin lights
- The floor is fitted out with Engineered Stone.
- Overhead is a opening deck hatch for ventilation.
- Combination shade-mosquito screens for opening deck hatch.
- Large hull windows with in glass opening porthole.
- Electrically operated blinds for cabin windows.
- Undermounted He’s and Her’s wash basins in a Engineered Stone top.
- Large storage drawers under the basin top.
- Splash proof 110V outlets at the basins.
- Overhead mirror door vanity unit with glass shelfs.
- On the inboard side is more storge lockers, drawers and mirror doors.
- Fresh water flush electric toilet with soft closing lid.
- Towel rail and toilet roll holder.
Bathroom shower area: - Access to the purpose designed shower is through a glass shower door with a custom sandblast vinyl design.
- Overhead recessed ceiling lights, all LED
- The shower has a Engineered Stone floor with hidden drain.
- Engineered stone is also used on the walls to give the shower a very elegant look.
- Engineered stone shelfs on both inboard and outboard sides gives ample surface space for storage.
- Duel purpose vanity type unit on the inboard side give easy access to equipment installed behind.
- Fixed seat on the inboard side of the shower
- Shower mixer with diverter for hand shower and overhead rain shower.
GUEST CABIN
Bedroom area and wardrobe: - Access to the guest cabin is from the port hull steps in the saloon area through a sliding door.
- Separate cabin door gives privacy for the bedroom area when the bathroom is utilised as a Day Head.
- Large hull windows with in glass opening porthole.
- Electrically operated blinds for cabin windows
- Large 2m x 1.6m bed, soft furnished headboard with reading lights and 110V plugs on both sides of the bed.
- Bed side table units with drawers on both sides of the bed.
- Large long term storage under the bed top with drawers on the side.
- Overhead is a opening deck hatch for ventilation and skylights for extra light.
- Combination shade-mosquito screens for opening deck hatch and skylight.
- Overhead recessed ceiling lights, all LED
- LED mood lighting.
- Light switch for cabin lights
- Laminated vinyl flooring with loose fitted carpet.
- The area is airconditioned by a individual air handler.
- Wireless charging stations and 110v outlets.
- Cabin door giving access to the Utility Room
- Wardrobe on inboard side with build in Splendid vented washer dryer. (Standard with Crew Cabin) *
- Wardrobe on inboard side with build in seperate washer and dryer. (only for versions with Optional Crew Cabin) **
- Wardrobe on inboard side with build in Splendid vented washer dryer and fridge/freezer. (only for versions with Optional Crew Cabin) **
- Full wardrobe on inboard side. (Standard with Untility Room) *
- Wardrobe on inboard side with additional build in fridge/freezer, wine cooler and space for a Dyson rechargeable vacuum cleaner. (only for versions with Untility Room) **
- En Suite bathroom.
Bathroom and toilet area: - Cabin door gives access to the bathroom area.
- Second cabin door also gives access to the bathroom from the wardrobe area when the bathroom is also utilised as a Day Head.
- Overhead recessed ceiling lights, all LED.
- Light switch for cabin lights
- The floor is fitted out with Engineered Stone.
- Overhead is a opening deck hatch for ventilation.
- Combination shade-mosquito screens for opening deck hatch.
- Large hull windows with in glass opening porthole.
- Electrically operated blinds for cabin windows.
- Undermounted He’s and Her’s wash basins in a Engineered Stone top.
- Large storage drawer under the basin top.
- Splash proof 110V outlet at the basins.
- Overhead mirror door vanity unit with glass shelfs.
- Fresh water flush electric toilet with soft closing lid.
- Towel rail and toilet roll holder.
Bathroom shower area: - Access to the purpose designed shower is through a glass shower door with a custom sandblast vinyl design.
- Overhead recessed ceiling lights, all LED
- The shower has a Engineered Stone floor with hidden drain.
- Engineered stone is also used on the walls to give the shower a very elegant look.
- Engineered stone shelfs on outboard sides gives ample surface space for storage.
- Shower mixer with diverter for hand shower and overhead rain shower.
- Towel rail.
UTILITY ROOM*
Access to the utility room is from the cockpit area via a staircase or from the guest cabin through a cabin door. Large hull windows with in glass opening porthole. Electrically operated blinds for cabin windows Single 2m x 0.860m Pullman bed that also can be used as a work bench with tool storage lockers and drawer underneath. Bed side storage shelfs and reading light. Separate washer and dryer unit with storage, large sink and Solid Surfacing counter top on the outboard side. storage shelfs with fiddles. Overhead recessed ceiling lights, all LED Light switch for cabin lights Laminated vinyl flooring. The area is airconditioned by a individual air handler. Wireless charging station and 110v outlets. OPTIONAL CREW CABIN IN PLACE OF UTILITY ROOM**
Access to the crew cabin is from the cockpit area via a staircase. Large hull windows with in glass opening porthole. Electrically operated blinds for cabin windows 1 x Single 2m x 0.860m bed with storage lockers and drawer underneath. 1 x storable single 2m x 0.860m bed. Bed side storage shelfs and reading light. Storage unit with Solid Surfacing counter top on the outboard side. Overhead recessed ceiling lights, all LED Light switch for cabin lights Laminated vinyl flooring. The area is airconditioned by a individual air handler. Wireless charging stations and 110v outlets. Shower, toilet unit with basin and vanity unit.
*Optional Extra Uppon Request
**Optional Extra
**Optional Extra
Systems & Extras
- UNDERWATER GEAR WITH STANDARD VOLVO IPS*
- UNDERWATER GEAR WITH OPTIONAL HYBRID PROPULSION**
- ENGINE ROOMS WITH STANDARD VOLVO IPS*
- ENGINE ROOMS WITH OPTIONAL HYBRID PROPULSION**
- FUEL SYSTEM
- ELECTRICAL SYSTEMS WITH STANDARD VOLVO IPS*
- ELECTRICAL SYSTEMS WITH OPTIONAL HYBRID PROPULSION**
- COMMUNICATION, NAVIGATION AND ELECTRONICS
- PLUMBING
- CLIMATE CONTROL
- ENTERTAINMENT
- ANCHORING AND MOORING
- MISCELLANEOUS
- SAFETY EQUIPMENT
UNDERWATER GEAR WITH STANDARD VOLVO IPS*
Two Volvo IPS 700 Drives Marelon Seacocks on all underwater fittings Full cathodic bonding system to zinc anodes 8 x blue/white underwater lights Interceptors. UNDERWATER GEAR WITH OPTIONAL HYBRID PROPULSION**
Drive shafts, brass props, P-Brackets and rudders Bow and stern thrusters. Marelon Seacocks on all underwater fittings Full cathodic bonding system to zinc anodes 8 x blue/white underwater lights Interceptors. ENGINE ROOMS WITH STANDARD VOLVO IPS*
Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor. These hatches are lockable and feature gas struts 2 x D8-IPS700, one in each hull. Each engine is mounted on a specially moulded bed. Complete forced air ventilation system Fuel filter/water separator in each engine and generator. Both engines start from a dedicated starter battery mounted in a each engine room, each with a isolator switch for safety. Overhead LED lights in each engine compartment. Engine room fully soundproofed. Fireboy automatic fire extinguishing system in each engine room 2 x Large capacity bilge pump with hi-water alarm in each engine room Manual bilge pump for each engine room. Fischer Panda PMS 25i – 20kW variable speed Generator fitted in the port engine room. The Generator starts with its own dedicated starter battery fitted in the stbd engine room with isolator switch for safety. Generator wet exhaust system fitted with water separator for quite operation. Two remote operated battery parallel switches for emergency start function between Generator/Stbd engine and Port/Stbd engines. Mastervolt high output alternators on both Volvo engines (2x 110A/24V) ENGINE ROOMS WITH OPTIONAL HYBRID PROPULSION**
Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor. These hatches are lockable and feature gas struts 2 x Yanmar 6LY (440 Hp) + 2 x 100kW (134Hp) eMotion electric engines, one in each hull. Each engine is mounted on a specially moulded bed. Complete forced air ventilation system Wet exhaust system including water trap, gooseneck and anti-siphon. Fuel filter/water separator for each engine and generator. Both engines start from a dedicated starter battery mounted in a each engine room, each with a isolator switch for safety. Overhead LED lights in each engine compartment. Engine room fully soundproofed. Fireboy automatic fire extinguishing system in each engine room 2 x Large capacity bilge pump with hi-water alarm in each engine room Manual bilge pump for each engine room. e-Motion 180kW Generator fitted in the port engine room. The Generator starts with its own dedicated starter battery fitted in the stbd engine room with isolator switch for safety. Generator wet exhaust system fitted with water separator for quite operation. Two remote operated battery parallel switches for emergency start function between Generator/Stbd engine and Port/Stbd engines. FUEL SYSTEM
Standard fuel capacity is 3690L / (975gal) All fuel tanks are integrated composite tanks with baffles. Two day tanks, one in each hull connected directly to engines and generator. Day tanks are 630L (Port) and 1100L (Stbd). Each day tank has its own dedicated filler fitted in the transom area. The main fuel tank of 1960L is situated mid ship on the wet deck. The main tank has its own dedicated filler mid ship on port side. All tanks are interlinked with two fuel transfer pumps to allow the transfer of fuel between tanks. All tanks are fitted with level sensors, shut off valves and breathers. ELECTRICAL SYSTEMS WITH STANDARD VOLVO IPS*
On board DC electrics are 12/24V with two wire-insulated return. On board AC electrics are 120V with three wire system. Wires are sized to minimize voltage drop. All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours For good heavy current termination, copper tinned bus bars are used. All light current conductors programmed and powered by C-Zone digital switching Batteries – the ship’s auxiliary load consists of 8 x 6kW, 24V systems and 1 x 1,3kW battery for 12V systems. A separate 12V Lead acid battery is supplied for each engine and generator as starter battery. DC switchboard for 12V loads. DC switchboard for 24V loads. DC thermal breakers are used for large power consumers. AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage. Euro American 2 pin and universal style AC outlets with USB-C (3A) facility fitted at various locations on the vessel 2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded and includes Zinc savers for protection when plugged into shore power. Each engine is fitted with an additional 110A High Output Alternator for charging the House Batteries through a Charge Regulator 2 x Mastervolt Chargemaster 24/110 battery chargers, switchable between 120V/60Hz & 220V/50Hz inputs. 2 x Invertor Charger – 120V Mastervolt Combimaster 24/4500-120 supplies all the AC power and is hooked to two 120V shore power inlets. Fischer Panda PMS 25i – 20kW variable speed generator. 6 x 190 Watt “walk on” Solar panels on super structure above saloon area. 26 x 110 Watt “walk on” solar panels on targa. 18 x 190 Watt “walk on” solar panels on hard top. Total of 7,42 kW solar power charging through MPPT chargers. ELECTRICAL SYSTEMS WITH OPTIONAL HYBRID PROPULSION**
On board DC electrics are 12/24V/652V with two wire-insulated return. On board AC electrics are 120/240V with three and four wire system. Wires are sized to minimize voltage drop. All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours For good heavy current termination, copper tinned bus bars are used. All light current conductors programmed and powered by C-Zone digital switching Batteries – the ship’s auxiliary load consists of 4x 39,1kW, 326V Li-Ion batteries; 4 x 6kW, 24V Li-Ion batteries for 24V systems and 1 x 1,3kW battery for 12V systems A separate 12V Lead acid battery is supplied for each engine and generator as starter battery. DC switchboard for 12V loads. DC switchboard for 24V loads. AC Hotel Panel for 120 and 240V loads. 240V/60Hz/50A AC circuit – including shore power inlet sockets, shore power cord, Isolation Transformers, Hotel Panel with necessary breakers and earth leakage, 2 x LC Filters, change over switches and 2 x 15,3kW Battery Chargers. 230V/50Hz/63A AC circuit – including shore power inlet sockets and change over switches for supplying power to 1 x 7,2kW Battery Charger. 180kW e-Motion Generator with Yanmar 4LV250 engine and Danfoss T500 Alternator. 100kW e-Motion Inverter. Euro American 2 pin and universal style AC outlets with USB-C (3A) facility fitted at various locations on the vessel 2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. 2 x Invertor Charger – 120V Mastervolt Combimaster 24/3500-100 supplies all uninterrupted AC loads from the 24V battery bank during AC Power Supply change over. 6 x 190 Watt “walk on” Solar panels on super structure above saloon area. 26 x 110 Watt “walk on” solar panels on targa. 18 x 190 Watt “walk on” solar panels on hard top. Total of 7,42 kW solar power charging through MPPT chargers. 2 x 100kW e-Motion electric engines with clutch. e-Motion control, power, charging and converting equipment installed selectively in both engine rooms. e-Motion system cooling pumps fitted in stbd engine room. 2 x Bow and Stern Thrusters, each with a dedicated 6kW Li-ion battery and shared charging system. COMMUNICATION, NAVIGATION AND ELECTRONICS
Complete C-Zone digital switching system and monitoring. C-Zone Touch 5 and10 displays. iPad with wireless control for C-zone/Simrad with wireless charging station. .Navigation lights Yacht Router Wi-Fi/cellular booster. VHF radio at main helm with secondary unit at flybridge helm. 3 x Simrad 24″ Chart plotters at flybridge helm station. 3 x Simrad 19″ Chart plotters at main helm station. e-Motion Parallel Hybrid – Functional Modes package on Simrad Chart plotters. 2 x Simrad display remote controller (OP50) Simrad autopilot with 2 controls. 4 x Simrad digital display (IS42) Fast-Acting Interceptor system. Windlass control with chain counter. Simrad HALO 24″ Radar. * PLUMBING
All freshwater hoses of re-enforced PVC tubing with “speed fit” connections. All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time. 4 x 215l L rigid polyethylene water tanks for easy removal and cleaning. Fresh water fillers on each for each tank set. Each water tank set is fitted with a level sensor for monitoring fluid level. One water heater of 80L. Two large capacity water pressure pumps mounted near water tanks. Each fresh water pump draws water from the appropriate fresh water tank and service the entire boat. Hot and cold mixer taps for all basins, showers and kitchen sink. Drinking water tap in galley with carbon filter. All grey water from showers and basins in the hulls are discharged overboard by a automatic drain sump in each hull. * 100 Ltr/26.42 US gal/min manual bilge pump, one for each engine room. 2 x hi capacity electric bilge pumps with automatic sensors for main bilge areas in each hull and engine rooms. All toilets are fresh water flush and are linked to two 215L black water tanks. Each black water tank is fitted with a level sensor for monitoring fluid levels. For discharge each black water tank has a diverter valve leading to a diaphragm pump that exits below waterline and a deck suction fitting. Fresh water deck wash connections at chain locker, flybridge and in cockpit. Overhead deck shower with hot and cold water on port transom. All below water line skin fittings are ball valve type Marelon skin fittings. All plumbing hose connections below waterline are fitted fit double hose clamps. Pull out shower with cold and hot water on port transom. Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose. Full e-Motion cooling system with main and back-up pumps. Water maker – Schenker Zen 150 (150 L/h) * CLIMATE CONTROL
Webasto chilled water system (77,000 BTU). 2 x Air handlers with controls for master cabin. 1 x Air handler with control for VIP guest cabin. 1 x Air handler with control for guest cabin. 1 x Air handler with control for utility room / crew cabin. 3 x Air handler with controls for saloon area. ENTERTAINMENT
Fusion Apollo sound system with 1 x subwoofer and 14 speakers 50″ TV in Saloon on electric lift. 50″ TV in Master Cabin on electric lift from ceiling. ** ANCHORING AND MOORING
80kg Ultra Anchor & Swivel connection. Stainless steel bow roller. 100m 12mm chain and 100m warp. Vertical 24v electric Windlass. Anchor Bridel attachment points on bows. Anchor Bridel. 8 x Stainless steel mooring cleats. 2 x Pop Up cleats on transom. 8 Large fenders * 10 x 10m tie up ropes. MISCELLANEOUS
Printed Equipment Manuals. Printed and Digital Owner’s Manual Comprehensive spares kit. ** Professional tool kit. ** 20 x Decorative cushions for Cockpit and Flybridge. ** 15 x Decorative cushions for Cockpit and Flybridge. ** 3 x Deck Chairs for Flybridge. ** 2 x Bar stools for Galley Island Unit. ** SAFETY EQUIPMENT
8 x Portable fire extinguishers. Category 1 offshore safety equipment including 8 man life raft
*Optional Extra Uppon Request
**Optional Extra
**Optional Extra
MAIN DIMENSIONS
MAIN DIMENSIONS
Length hull | 18.48 m / 60.63 ft |
Length overall | 18.49 m / 60.66 ft |
Length waterline | 18.11 m / 59.41 ft |
Beam | 8.12 m / 26.64 ft |
Draft with Hybrid Propulsion, shaft drive | 1.19 m / 3.9 ft |
Draft with IPS | 1.15 m / 3.77 ft |
Bridge Deck Clearance | 1.05 m / 3.45 ft |
Standard propulsion Engines * | 2x Volvo D8-IPS700 (450 Hp) |
Optional Hybrid Propulsion ** | 2x Yanmar 6LY (440 Hp) + 2x 134 Hp eMotion electric engine |
Fresh Water capacity | 860 Litres / 227.19 gal |
Black Water | 430 Litres / 113.59 gal |
Standard Fuel Tanks * | 3690 Litres / 974.79 gal |
Classification | CE_Category A |
Displacement Lightship | 38 t (approx) / 83 776 lb |
HULL
HULL
Hull standard Gelcoat colour is white plus painted targa. * | |
For osmosis protection an ISO / NPG Gelcoat is used | |
Hull glass with ceramic borders providing UV protection on the bonding areas with opening port holes in selected panels for extra ventilation. | |
Hose connections to inboard side of stainless steel sea-cocks have two stainless steel hose clamps. | |
Integrate Targa wing with painted finished (Standard colour combination; MIDNIGHT GRAY) and recessed solar panels * |
DECK AND SUPER STRUCTURE
DECK AND SUPER STRUCTURE
The deck surface on the foredeck area above the master cabin has a moulded patterned non-slip finish, while the rest of the deck is fitted out with high quality artificial Teak Decking. | |
Deck and super structure standard Gelcoat colour is white plus painted hardtop. * | |
Flush deck hatches for ventilation. | |
Skylight windows above master cabin. | |
Large forward facing windows for saloon and master cabin. | |
Forward central windows in saloon and master cabin are electrically opening hatches. | |
Large side cabin windows for saloon area. | |
Fore deck hatches for storage with recessed and lockable stainless steel catches including stainless steel gas struts to hold hatch in the open position. | |
Dedicated windlass and anchor lockers with fresh water deck wash. | |
Large access opening deck hatches on port and stbd foredeck peak gives access to white topcoated locker with access ladder and splashproof 110V outlet. | |
Solid tubular stainless steel side railings with middle stainless steel wire includes pull-pits with Teak seats. | |
Lounging area in front of forward facing saloon windows. * | |
Tow rail is incorporated into the deck as a raised gunnel section with a draining gutter running forward aft. | |

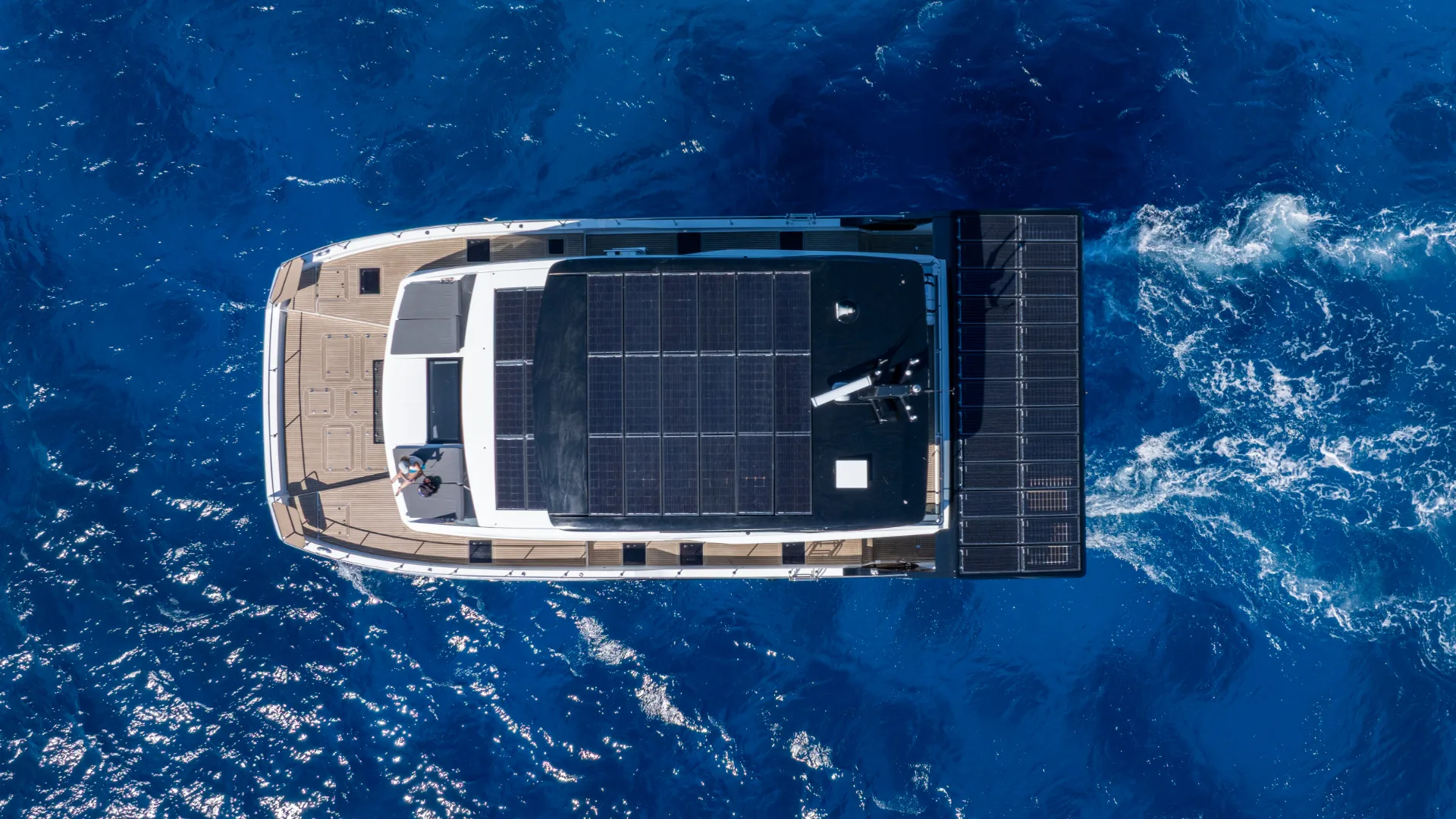

Recessed solar panels on upper part of super structure. | |
Fuel fillers port and stbd, two on each side. | |
Eight stainless steel mooring cleats with 1 x pop-up type cleat on transom. | |
Fresh water fillers port and stbd. | |
Side pantograph type entrance door at main helm position. |
COCKPIT
COCKPIT
The cockpit floor surface is fitted out with high quality artificial Teak Decking. | |
The cockpit area are self draining. | |
Large, recessed cockpit well grating in front of companionway door. | |
Moulded staircase with artificial teak steps to flybridge. | |
Stern seating with luxury cushions, storage underneath and splash proof 110V outlet. | |
Teak cockpit dining table with world map on fixed pedestals. * | |
Teak cockpit foldable dining/coffee table on electric pedestals that can also be converted into a bed. ** | |
Dimmable overhead lighting. | |
Dimmable floor level courtesy lighting in blue. | |
Dimmable floor mood lighting. | |
Four cockpit speakers. | |
Large access hatch in floor to battery compartment.* | |
Large lockable folding companionway doors gives access to the saloon. | |
Large deck hatches with recessed and lockable stainless steel catches including stainless steel gas struts to hold hatch in the open position, gives access to the engine rooms. | |
Entrance door to utility room/crew cabin. | |
Wet bar with storage, splash proof 110V outlet, build in electrical grill and sink. * | |
Build in drinks fridge in cockpit wet bar. ** | |
Fresh water deck wash. | |
Full cockpit enclosure with mesh and canvas windows. |
TRANSOM AREA
TRANSOM AREA
The transom steps and dive platform are fitted out with high quality artificial Teak Decking. | |
The large hydraulic operated dive platform with override can also be used for storing the tender and have a lifting capacity of 600kg. (size 4.1m x 1.68m / 13.45ft x 5.51ft) | |
Tender; Williams Sportjet 395 ** | |
Tender; AB ALX15 + Yamaha F-60 outboard and Carbon Davit. ** | |
Large water Toy Garage with electrically operated door with incorporated folding seat are situated on the back of the stern seating module. * | |
Fitted inside Toy Garage, Dive Compressor pre-install. ** | |
Fitted inside Toy Garage, Full scuba package with dive compressor and 6 dive bottles. ** | |
Dimmable low level courtesy lighting in blue for all steps. | |
Overhead shower with hot and cold water incorporated into Targa. | |
Handheld pop up shower with hot and cold water. | |
Electrical shore power connection sockets. | |
Shore water connection with pressure reduction valve. | |
Wide retractable stainless steel bathing ladder with handrails on port stern. | |
Spectra rope with pelican clip, retractable aft gates. | |
Navigation stern light fitted on back of Targa. |
FLYBRIDGE
FLYBRIDGE
The flybridge floor surface is fitted out with high quality artificial Teak Decking. | |
The flybridge area are self draining. | |
Stylish hardtop with painted finish. * | |
Instrument tower fitted on hardtop. | |
Integrated into the hardtop is fold down soft enclosure side for entire flybridge area. | |
Overhead dimmable lighting including red lighting for night navigation. | |
Deflecting spray screen. | |
Four waterproof speakers. | |
Stern seating and sunbathing area with luxury cushions and storage underneath. | |
Stainless steel guard rails and grab rails | |
Forward seating groups next to the helm station. | |
Dining area seating with teak dining table on fixed pedestals. * | |
Teak foldable dining/coffee table on electric pedestals that can also be converted into a bed. ** | |
Access hatches and stairs to cockpit and saloon. | |
Galley area with ample counter space, storage cupboards, splash proof 110V outlet, drinks fridge, large build in electric grill with lid and a sink. * | |
Two adjustable helm seats. | |
Fresh water deck wash. | |
Centrally mounted in the front is a instrument module with the following equipment:
|
INTERIOR FINISHES
INTERIOR FINISHES
All joinery work and finishing in the living areas is done in accordance with the best yacht practice, using first-grade marine materials. | |
All cupboard locker doors and drawers fitted with stylish catches in satin chrome finish. | |
All cupboard locker doors and drawers fitted with soft close hinges and drawer slides. | |
All Veneer and solid wood are varnished for a professional and durable finish. | |
Interior of all cupboards where possible have lined or painted surfaces. | |
Ceilings and topside linings in soft touch luxurious vinyl furnishings. | |
Laminated vinyl flooring throughout living areas and have loose fitted carpets in cabins and saloon. | |
Engineered Stone flooring are used for bathroom and galley areas. | |
Cabin mattresses is multilayer foam with several densities covered with fabric. | |
Basin units, basins and galley tops made from Solid Surfacing and Engineered Stone. |
SALOON
SALOON
Large saloon area with 360 degree panoramic view | |
Central forward facing window is a electrically operating hatch that can be opened for ventilation in saloon area | |
Laminated vinyl flooring with loose fitted carpet. | |
U-shaped settee with cloth upholstery | |
Loose Ottomans provides extra seating, the possibility to create a bed, be converted into a coffee table and also have dedicated storage for the Ottoman and coffee tray when not in use. | |
Electrically operated blinds for saloon cabin windows | |
Storage compartments under saloon seating | |
The saloon ceilings are covered in hi quality vinyl with recessed LED downlights. | |
Recessed overhead LED lighting. | |
LED mood lighting. | |
Light switches to operate and dim light output | |
Various 110V AC outlets. | |
USB charging ports incorporated with 110V AC outlets in strategic areas. | |
The area is airconditioned by a individual air handler. | |
The 50″ TV is fitted on a electrical lift that is able to rotate for better viewing angles. | |
Four speakers with one subwoofer. |
GALLEY
GALLEY
Galley in main saloon to Port with direct access to cockpit | |
Recessed overhead LED lighting. | |
LED mood lighting. | |
Light switch and dimmer for overhead lighting | |
Engineered Stone flooring throughout galley area. | |
L-Shape counter top in Engineered Stone with induction stove tops, under counter rubbish bins, single sink, chromed professional mixer tap and drinking water tap. | |
Behind the induction stove tops is some extra storage compartments on the outboard side below the cabin window | |
Above the stove tops is upper level storage with a build in extraction hood and recessed overhead LED lighting. | |
Bosch Convection microwave oven and Bosch dishwasher fitted in L-Shape galley unit with storage on both sides and multiple drawers, including a small “sponse compartment” | |
Galley island unit with large storage, multiple drawers and Engineered Stone counter top. | |
Build in, Bosch home style, side by side fridge/freezer with build in ice maker and water dispenser | |
Electrically operated blinds for cabin windows | |
Numerous 110v outlets | |
Fire extinguisher and Fire Blanket is fitted in the cupboard. |
DINING AREA
DINING AREA
Dining area in main saloon to STBD with direct access to cockpit | |
U-shaped settee with cloth upholstery | |
Storage compartments under saloon seating | |
Large dining table with central storage compartment. | |
Recessed overhead LED lighting. | |
LED mood lighting. | |
Light switch and dimmer for overhead lighting | |
Engineered Stone flooring throughout dining area. | |
Electrically operated blinds for cabin windows | |
Numerous 110v outlets | |
The area is airconditioned by a individual air handler. | |
Next to the companionway door is a unit with a wine cooler and low level storage drawer. * | |
Coffee Bar with low level storage drawer place of the wine cooler next to the companionway door. ** | |
Fitted above the wine coolers is a C-Zone Touch 7 screen for control of the electrical systems. |
MAIN HELM
MAIN HELM
Large windows gives good all round visibility | |
Electrically operated blinds for cabin windows | |
Navigation table with under desk organiser that includes electrical outlets and USB charging ports | |
Navigation table top has one wireless charging station, chart light and two cup holders | |
Two leather covered adjustable helm seats with foot rest | |
Leather covered steering wheel | |
Engine controls | |
Joystick controls (Standard with Volvo IPS only) | |
Overhead dimmable lighting including red lighting for night navigation | |
The floor is covered with wood finish vinyl flooring | |
The area is airconditioned by a individual air handler. | |
Side door for easy access to the deck | |
Staircase with wood finish steps gives access to the flybridge area thought a large deck hatch | |
Side unit with electrical switch panels | |
Storage cupboards to the back of the helm area | |
Mounted in a practical and neat arrangement into a stylish and modern dashboard are the below mentioned equipment:
|
MASTER CABIN
MASTER CABIN
Bedroom area:
| |
Dresser area (Port):
| |
Bathroom basin area (Stbd):
| |
Bathroom shower area (Stbd):
| |
Bathroom toilet area (Stbd):
|
VIP GUEST CABIN
VIP GUEST CABIN
Bedroom area:
| |
Dresser area:
| |
Bathroom and toilet area:
| |
Bathroom shower area:
|
GUEST CABIN
GUEST CABIN
Bedroom area and wardrobe:
| |
Bathroom and toilet area:
| |
Bathroom shower area:
|
UTILITY ROOM*
UTILITY ROOM*
Access to the utility room is from the cockpit area via a staircase or from the guest cabin through a cabin door. | |
Large hull windows with in glass opening porthole. | |
Electrically operated blinds for cabin windows | |
Single 2m x 0.860m Pullman bed that also can be used as a work bench with tool storage lockers and drawer underneath. | |
Bed side storage shelfs and reading light. | |
Separate washer and dryer unit with storage, large sink and Solid Surfacing counter top on the outboard side. | |
storage shelfs with fiddles. | |
Overhead recessed ceiling lights, all LED | |
Light switch for cabin lights | |
Laminated vinyl flooring. | |
The area is airconditioned by a individual air handler. | |
Wireless charging station and 110v outlets. |
OPTIONAL CREW CABIN IN PLACE OF UTILITY ROOM**
OPTIONAL CREW CABIN IN PLACE OF UTILITY ROOM**
Access to the crew cabin is from the cockpit area via a staircase. | |
Large hull windows with in glass opening porthole. | |
Electrically operated blinds for cabin windows | |
1 x Single 2m x 0.860m bed with storage lockers and drawer underneath. | |
1 x storable single 2m x 0.860m bed. | |
Bed side storage shelfs and reading light. | |
Storage unit with Solid Surfacing counter top on the outboard side. | |
Overhead recessed ceiling lights, all LED | |
Light switch for cabin lights | |
Laminated vinyl flooring. | |
The area is airconditioned by a individual air handler. | |
Wireless charging stations and 110v outlets. | |
Shower, toilet unit with basin and vanity unit. |
UNDERWATER GEAR WITH STANDARD VOLVO IPS*
UNDERWATER GEAR WITH STANDARD VOLVO IPS*
Two Volvo IPS 700 Drives | |
Marelon Seacocks on all underwater fittings | |
Full cathodic bonding system to zinc anodes | |

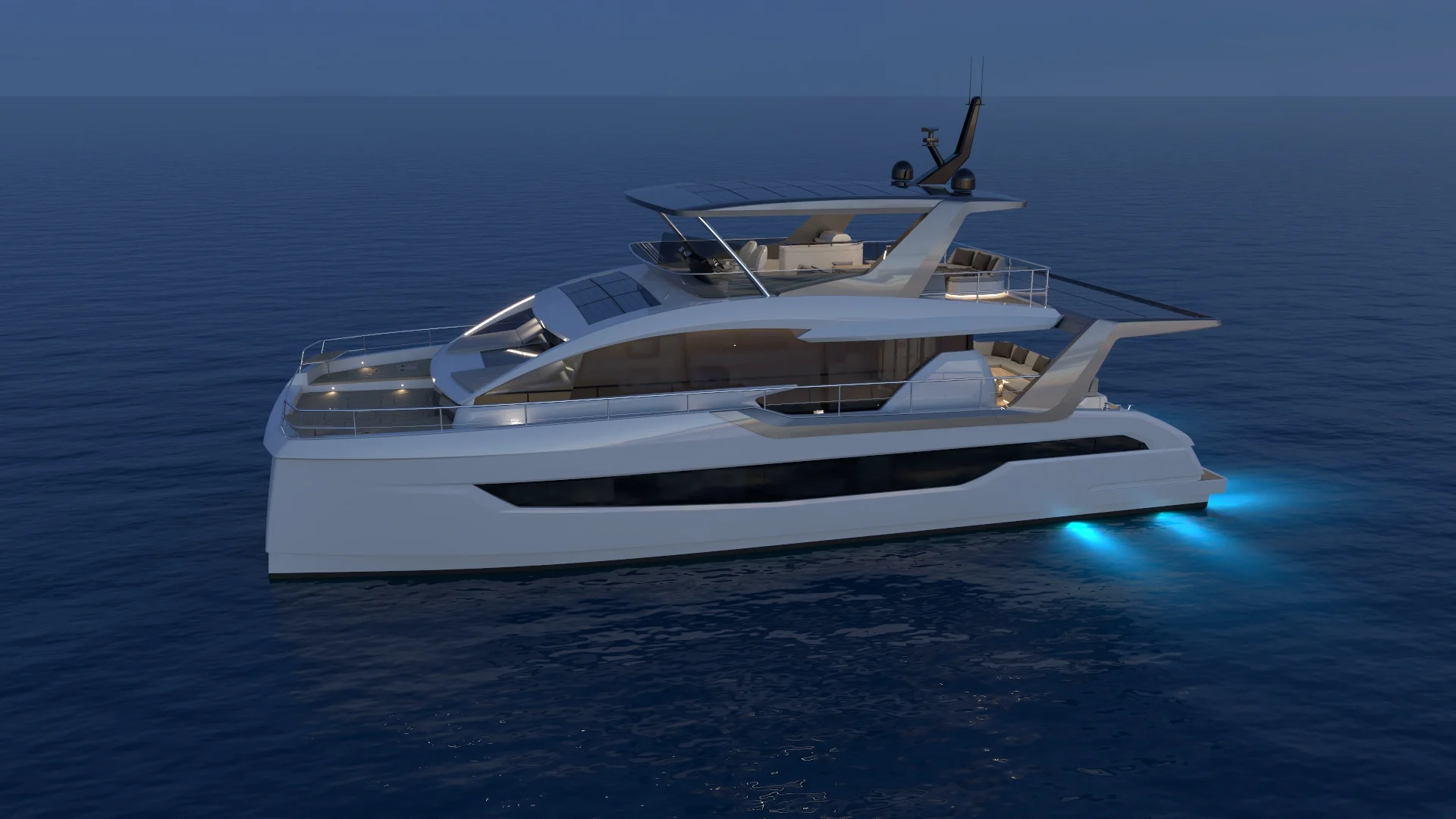

8 x blue/white underwater lights | |
Interceptors. |
UNDERWATER GEAR WITH OPTIONAL HYBRID PROPULSION**
UNDERWATER GEAR WITH OPTIONAL HYBRID PROPULSION**
Drive shafts, brass props, P-Brackets and rudders | |
Bow and stern thrusters. | |
Marelon Seacocks on all underwater fittings | |
Full cathodic bonding system to zinc anodes | |
8 x blue/white underwater lights | |
Interceptors. |
ENGINE ROOMS WITH STANDARD VOLVO IPS*
ENGINE ROOMS WITH STANDARD VOLVO IPS*
Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor. | |
These hatches are lockable and feature gas struts | |
2 x D8-IPS700, one in each hull. | |
Each engine is mounted on a specially moulded bed. | |
Complete forced air ventilation system | |
Fuel filter/water separator in each engine and generator. | |
Both engines start from a dedicated starter battery mounted in a each engine room, each with a isolator switch for safety. | |
Overhead LED lights in each engine compartment. | |
Engine room fully soundproofed. | |
Fireboy automatic fire extinguishing system in each engine room | |
2 x Large capacity bilge pump with hi-water alarm in each engine room | |
Manual bilge pump for each engine room. | |
Fischer Panda PMS 25i – 20kW variable speed Generator fitted in the port engine room. | |
The Generator starts with its own dedicated starter battery fitted in the stbd engine room with isolator switch for safety. | |
Generator wet exhaust system fitted with water separator for quite operation. | |
Two remote operated battery parallel switches for emergency start function between Generator/Stbd engine and Port/Stbd engines. | |
Mastervolt high output alternators on both Volvo engines (2x 110A/24V) |
ENGINE ROOMS WITH OPTIONAL HYBRID PROPULSION**
ENGINE ROOMS WITH OPTIONAL HYBRID PROPULSION**
Access to the engine rooms is via 2 specially moulded large hatches in the aft cockpit floor. | |
These hatches are lockable and feature gas struts | |
2 x Yanmar 6LY (440 Hp) + 2 x 100kW (134Hp) eMotion electric engines, one in each hull. | |
Each engine is mounted on a specially moulded bed. | |
Complete forced air ventilation system | |
Wet exhaust system including water trap, gooseneck and anti-siphon. | |
Fuel filter/water separator for each engine and generator. | |
Both engines start from a dedicated starter battery mounted in a each engine room, each with a isolator switch for safety. | |
Overhead LED lights in each engine compartment. | |
Engine room fully soundproofed. | |
Fireboy automatic fire extinguishing system in each engine room | |
2 x Large capacity bilge pump with hi-water alarm in each engine room | |
Manual bilge pump for each engine room. | |
e-Motion 180kW Generator fitted in the port engine room. | |
The Generator starts with its own dedicated starter battery fitted in the stbd engine room with isolator switch for safety. | |
Generator wet exhaust system fitted with water separator for quite operation. | |
Two remote operated battery parallel switches for emergency start function between Generator/Stbd engine and Port/Stbd engines. |
FUEL SYSTEM
FUEL SYSTEM
Standard fuel capacity is 3690L / (975gal) | |
All fuel tanks are integrated composite tanks with baffles. | |
Two day tanks, one in each hull connected directly to engines and generator. | |
Day tanks are 630L (Port) and 1100L (Stbd). | |
Each day tank has its own dedicated filler fitted in the transom area. | |
The main fuel tank of 1960L is situated mid ship on the wet deck. | |
The main tank has its own dedicated filler mid ship on port side. | |
All tanks are interlinked with two fuel transfer pumps to allow the transfer of fuel between tanks. | |
All tanks are fitted with level sensors, shut off valves and breathers. |
ELECTRICAL SYSTEMS WITH STANDARD VOLVO IPS*
ELECTRICAL SYSTEMS WITH STANDARD VOLVO IPS*
On board DC electrics are 12/24V with two wire-insulated return. | |
On board AC electrics are 120V with three wire system. | |
Wires are sized to minimize voltage drop. | |
All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours | |
For good heavy current termination, copper tinned bus bars are used. | |
All light current conductors programmed and powered by C-Zone digital switching | |
Batteries – the ship’s auxiliary load consists of 8 x 6kW, 24V systems and 1 x 1,3kW battery for 12V systems. | |
A separate 12V Lead acid battery is supplied for each engine and generator as starter battery. | |
DC switchboard for 12V loads. | |
DC switchboard for 24V loads. | |
DC thermal breakers are used for large power consumers. | |
AC circuit – including shore power inlet sockets, shore power cord, electrical panel with necessary breakers and earth leakage. | |
Euro American 2 pin and universal style AC outlets with USB-C (3A) facility fitted at various locations on the vessel | |
2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded and includes Zinc savers for protection when plugged into shore power. | |
Each engine is fitted with an additional 110A High Output Alternator for charging the House Batteries through a Charge Regulator | |
2 x Mastervolt Chargemaster 24/110 battery chargers, switchable between 120V/60Hz & 220V/50Hz inputs. | |
2 x Invertor Charger – 120V Mastervolt Combimaster 24/4500-120 supplies all the AC power and is hooked to two 120V shore power inlets. | |
Fischer Panda PMS 25i – 20kW variable speed generator. | |
6 x 190 Watt “walk on” Solar panels on super structure above saloon area. | |
26 x 110 Watt “walk on” solar panels on targa. | |
18 x 190 Watt “walk on” solar panels on hard top. | |
Total of 7,42 kW solar power charging through MPPT chargers. |
ELECTRICAL SYSTEMS WITH OPTIONAL HYBRID PROPULSION**
ELECTRICAL SYSTEMS WITH OPTIONAL HYBRID PROPULSION**
On board DC electrics are 12/24V/652V with two wire-insulated return. | |
On board AC electrics are 120/240V with three and four wire system. | |
Wires are sized to minimize voltage drop. | |
All light current wiring is silicon tinned wiring which is flame proof and does not give off toxic vapours | |
For good heavy current termination, copper tinned bus bars are used. | |
All light current conductors programmed and powered by C-Zone digital switching | |
Batteries – the ship’s auxiliary load consists of 4x 39,1kW, 326V Li-Ion batteries; 4 x 6kW, 24V Li-Ion batteries for 24V systems and 1 x 1,3kW battery for 12V systems | |
A separate 12V Lead acid battery is supplied for each engine and generator as starter battery. | |
DC switchboard for 12V loads. | |
DC switchboard for 24V loads. | |
AC Hotel Panel for 120 and 240V loads. | |
240V/60Hz/50A AC circuit – including shore power inlet sockets, shore power cord, Isolation Transformers, Hotel Panel with necessary breakers and earth leakage, 2 x LC Filters, change over switches and 2 x 15,3kW Battery Chargers. | |
230V/50Hz/63A AC circuit – including shore power inlet sockets and change over switches for supplying power to 1 x 7,2kW Battery Charger. | |
180kW e-Motion Generator with Yanmar 4LV250 engine and Danfoss T500 Alternator. | |
100kW e-Motion Inverter. | |
Euro American 2 pin and universal style AC outlets with USB-C (3A) facility fitted at various locations on the vessel | |
2 x large under water Zinc anodes fitted to hull. DC and AC are common grounded. | |
2 x Invertor Charger – 120V Mastervolt Combimaster 24/3500-100 supplies all uninterrupted AC loads from the 24V battery bank during AC Power Supply change over. | |
6 x 190 Watt “walk on” Solar panels on super structure above saloon area. | |
26 x 110 Watt “walk on” solar panels on targa. | |
18 x 190 Watt “walk on” solar panels on hard top. | |
Total of 7,42 kW solar power charging through MPPT chargers. | |
2 x 100kW e-Motion electric engines with clutch. | |
e-Motion control, power, charging and converting equipment installed selectively in both engine rooms. | |
e-Motion system cooling pumps fitted in stbd engine room. | |
2 x Bow and Stern Thrusters, each with a dedicated 6kW Li-ion battery and shared charging system. |
COMMUNICATION, NAVIGATION AND ELECTRONICS
COMMUNICATION, NAVIGATION AND ELECTRONICS
Complete C-Zone digital switching system and monitoring. | |
C-Zone Touch 5 and10 displays. | |
iPad with wireless control for C-zone/Simrad with wireless charging station. | |
Navigation lights | |
Yacht Router Wi-Fi/cellular booster. | |
VHF radio at main helm with secondary unit at flybridge helm. | |
3 x Simrad 24″ Chart plotters at flybridge helm station. | |
3 x Simrad 19″ Chart plotters at main helm station. | |
e-Motion Parallel Hybrid – Functional Modes package on Simrad Chart plotters. | |
2 x Simrad display remote controller (OP50) | |
Simrad autopilot with 2 controls. | |
4 x Simrad digital display (IS42) | |
Fast-Acting Interceptor system. | |
Windlass control with chain counter. | |
Simrad HALO 24″ Radar. * |
PLUMBING
PLUMBING
All freshwater hoses of re-enforced PVC tubing with “speed fit” connections. | |
All hot water piping enclosed in a neoprene covering to maintain temperature over long periods of time. | |
4 x 215l L rigid polyethylene water tanks for easy removal and cleaning. | |
Fresh water fillers on each for each tank set. | |
Each water tank set is fitted with a level sensor for monitoring fluid level. | |
One water heater of 80L. | |
Two large capacity water pressure pumps mounted near water tanks. | |
Each fresh water pump draws water from the appropriate fresh water tank and service the entire boat. | |
Hot and cold mixer taps for all basins, showers and kitchen sink. | |
Drinking water tap in galley with carbon filter. | |
All grey water from showers and basins in the hulls are discharged overboard by a automatic drain sump in each hull. * | |
100 Ltr/26.42 US gal/min manual bilge pump, one for each engine room. | |
2 x hi capacity electric bilge pumps with automatic sensors for main bilge areas in each hull and engine rooms. | |
All toilets are fresh water flush and are linked to two 215L black water tanks. | |
Each black water tank is fitted with a level sensor for monitoring fluid levels. | |
For discharge each black water tank has a diverter valve leading to a diaphragm pump that exits below waterline and a deck suction fitting. | |
Fresh water deck wash connections at chain locker, flybridge and in cockpit. | |
Overhead deck shower with hot and cold water on port transom. | |
All below water line skin fittings are ball valve type Marelon skin fittings. | |
All plumbing hose connections below waterline are fitted fit double hose clamps. | |
Pull out shower with cold and hot water on port transom. | |
Fresh water shore connection fitted on port transom step area for connecting ships fresh water system to shore water hose. | |
Full e-Motion cooling system with main and back-up pumps. | |
Water maker – Schenker Zen 150 (150 L/h) * |
CLIMATE CONTROL
CLIMATE CONTROL
Webasto chilled water system (77,000 BTU). | |
2 x Air handlers with controls for master cabin. | |
1 x Air handler with control for VIP guest cabin. | |
1 x Air handler with control for guest cabin. | |
1 x Air handler with control for utility room / crew cabin. | |
3 x Air handler with controls for saloon area. |
ENTERTAINMENT
ENTERTAINMENT
Fusion Apollo sound system with 1 x subwoofer and 14 speakers | |
50″ TV in Saloon on electric lift. | |
50″ TV in Master Cabin on electric lift from ceiling. ** |
ANCHORING AND MOORING
ANCHORING AND MOORING
80kg Ultra Anchor & Swivel connection. | |
Stainless steel bow roller. | |
100m 12mm chain and 100m warp. | |
Vertical 24v electric Windlass. | |
Anchor Bridel attachment points on bows. | |
Anchor Bridel. | |
8 x Stainless steel mooring cleats. | |
2 x Pop Up cleats on transom. | |
8 Large fenders * | |
10 x 10m tie up ropes. |
MISCELLANEOUS
MISCELLANEOUS
Printed Equipment Manuals. | |
Printed and Digital Owner’s Manual | |
Comprehensive spares kit. ** | |
Professional tool kit. ** | |
20 x Decorative cushions for Cockpit and Flybridge. ** | |
15 x Decorative cushions for Cockpit and Flybridge. ** | |
3 x Deck Chairs for Flybridge. ** | |
2 x Bar stools for Galley Island Unit. ** |
SAFETY EQUIPMENT
SAFETY EQUIPMENT
8 x Portable fire extinguishers. | |
Category 1 offshore safety equipment including 8 man life raft |
Brochure – Sixty Solar Power
