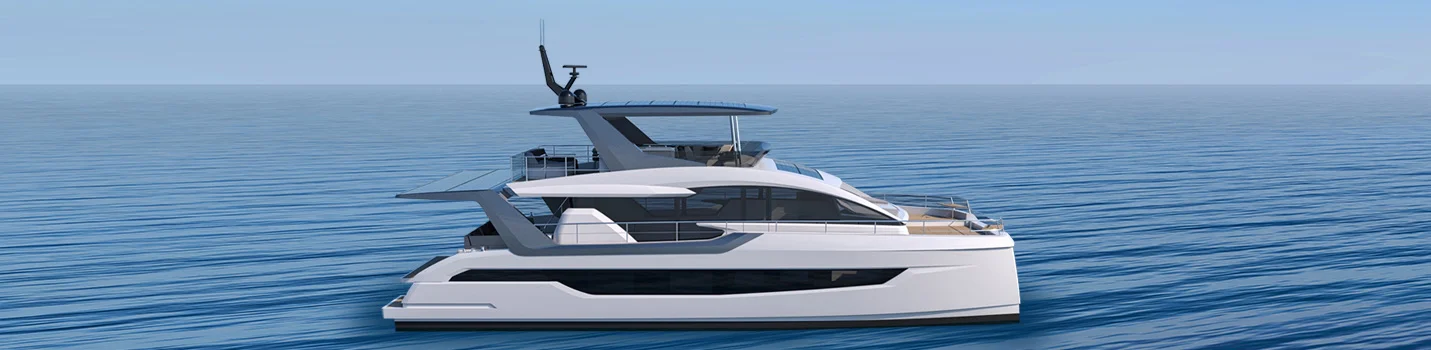

Xquisite 60 Solar Power Specifications

Xquisite 60 Solar Power Specifications
  • MAIN DIMENSIONS

    Length overall18.50 m
    Length waterline18.10 m
    Beam8.125 m
    Hull Draft0.84 m
    Draft (inc. IPS Leg)1.15 m
    Bridge Deck Clearance1.050 m
    Displacement Lightship38 t (approx.)
    Fuel capacity4 x 875 litres
    Long range Fuel Tanks2 x 750 litres
    Fresh water capacity2 x 500 litres
    Black Water2 x 250 litres
    Grey Water (optional)2 x 250 litres
    Standard Engine2 x D8-IPS700
    CE CertificationCategory A
  • TRANSOM

    • High-Low tender platform, H&B Linear lift system 800kg SWL (inc. weight of platform)
    • Platform size W 4.1m x L 1.68m
    • Overhead shower incorporated into Targa
    • Retractable stainless steel bathing ladder
  • DECK

    • Navigation Lights
    • Courtesy deck lights
    • Platform, aft cockpit, side deck, foredeck and flybridge in Flexiteek.
    • Stainless steel guard rails with lower guard wire and port and starboard bow
  • AFT DECK

    • Aft U-shape seat with adjustable backrests to provide flexible arrangement
    • Electric high/low folding table
    • Aft Cockpit seat incorporates stowage for 3 paddle boards, dive compressor and 6 scuba tanks
    • Aft facing, folding seat in paddle board hatch
    • 2x large engine room access hatches
    • Wetbar with large electric grill, sink, drink fridge and drink holders
  • FLYBRIDGE

    • Helm console with:
      • Twin helm seats with fore and aft adjustment
      • 3x Garmin displays
      • Volvo throttle + joystick
      • Trim tab controls
      • Full engine instrumentation
      • Steering wheel
      • VHF, Instruments, compass, switches etc.
      • Windlass control with chain counter
      • Drink’s holder and wireless mobile charging
    • Forward facing L-shape seat to port with stowage locker
    • Sunpad forward and aft
    • Large U-shaped seat to port with stowage lockers and cockpit table
    • Large L-Shape wetbar incorporating: sink, drink fridge and drink holders
    • Access via aft deck stairs and interior stairs
    • Windscreen
  • FOREDECK

    • Sunpads with adjustable backrest and shade
    • 4x foredeck hatches for access to stowage and chain locker
    • 2x hatches for access to windless and bow roller/ anchor bridle
    • 2x Forepeaks accessed via Lewmar size 70 flush hatch
  • SECONDARY INTERIOR HELM POSITION

    • Forward starboard screen with windscreen wiper
    • Helm console with:
      • Twin helm seats with fore and aft adjustment
      • 3x Garmin displays
      • Volvo throttle + joystick
      • Trim tab controls
      • Full engine instrumentation
      • Steering wheel
      • VHF, Instruments, compass, switches etc.
      • Windlass control with chain counter
    • Drink’s holder and wireless mobile charging
  • DOORS, WINDOWS & HATCHES

    • 2x (H 1872mm x W 643mm) Lewmar forward central electrically opening hatch in saloon and master cabin
    • Flat Hull glass with Lewmar port in glass (PING)
      • 4 x PING 200
      • 6 x PING 110
    • Lewmar flush deck hatches
      • 3 x size 10 hatches
      • 5 x size 44 hatches
      • 1 x size 54 hatch
      • 1 x size 60 hatch
      • 2 x size 70 hatch with aluminium lid
    • Helm Side door, Nemo Marine Manual Pantograph Door
    • Utility area deck access door, Nemo Marine Manual Pantograph Door
    • Bi-fold doors between saloon and aft deck, Split in to 5 doors, overall size W 3500mm x H 1965mm
    • 2x Flybridge Hatches (1600mm x 750mm), Lewmar or equivalent
  • MOORING & ANCHORING

    • Stainless steel bow roller
    • 80kg Ultra Anchor & UFS16-100 Swivel
    • 100m 12mm chain and 100m warp
    • Vertical 24v electric Windless
    • Anchor Bridal
    • 8 mooring cleats
    • 2 x Lewmar C3 Vertical capstans aft
  • PROPULSION

    • 2x Volvo D8-IPS700 (2 x 550HP)
    • 2x Humphree’s / Volvo interceptors
    • Raw water strainer
    • Engine room forced ventilation
    • Engine room soundproofing
    • Remotely operated fire extinguisher system
  • FUEL SYSTEM

    • 4x 875 litre fuel tanks and 2 x 750 litre optional long-range tanks (5000 litre total capacity)
    • Remote fuel shutoff valves
    • Fuel tank gauges
    • Fuel fillers on port and starboard
    • High-capacity fuel filters/water traps with fuel contamination warning system
  • WATER SYSTEM

    FRESHWATER SYSTEM
    • 2x 500 litre water tanks
    • Water tank gauges
    • Water fillers on deck
    • 2x Water pumps for pressurised hot /cold water system
    BLACK AND GREY WATER SYSTEM
    • 2x 250 litres black water tanks, one located in each hull
    • (optional) 2x 500 litre grey water tanks, shower, washbasins, galley and washing machine to drain to grey water tank
    • Water tanks gauges
    • Deck pump out
    • Remote tank emptying via pump
  • ELECTRICAL

    • Solar:
      • Hardtop: 3.99kW, 21 x 190w Solara S-Series Vision panels
      • Targa: 2.860kW, 26 x 110w Solara S-Series Vision panels
      • Coach roof: 1.14kW, 6 x 190w Solara S-Series Vision panels
      • Total 7.99kW
      • 5 x Mastervolt SCM60 MPPT solar charge controllers
    • House batteries: 8x 24v 5.5kWh Mastervolt Li-ion batteries (44kWh total)
    • 3 x 12v starter batteries
    • Fischer Panda PMS 25i – 20kW variable speed generator
    • Mastervolt high output alternators on both engines (2x 150A/24V)
    • 10kW Mastervolt inverters 120V/60Hz
    • Matervolt battery chargers – 440A/24V switchable between 120V/60Hz & 220V/50Hz input
  • ELECTRONICS

    • Complete Garmin electronics with radar, AIS, sonar, autopilot (all the latest models)
    • Garmin camera on the stern for docking
    • 6x Garmin displays (3x on flybridge & 3x on inside helm)
    • Complete C-Zone digital switching system
    • 2x C-Zone Touch 10” displays (1x on flybridge & 1x on inside helm)
    • iPad with wireless control for C-zone/Garmin with wireless charging station
    • Yacht Router wifi/cellular booster
    • Fusion Apollo sound system with subwoofer and 10 speakers
  • APPLIANCES

    • Washer/dryer combo (vented)
    • 50” 4K smart TV in salon with pivoting TV lift
    • BOSCH side by side refrigerator with icemaker and drinking water dispenser
    • BOSCH speed oven with convection and microwave
    • BOSCH dishwasher
    • KENYON induction cooktop – 4 burners
    • KENYON electric grill – double burner
    • 2 x Drink fridges (1x in cockpit & 1x on flybridge)
    • Spectra Newport 1000c water maker (41g/h – 24V)
  • AIR CONDITIONING

    • Frigomar chilled water system (70,000 BTU – BLDC inverter technology)
  • STANDARD FEATURES

    • Tool cabinet with all the necessary tools
    • Extensive spare parts package
    • Electric oil changers in both engine rooms
    • Reversible fuel transfer pump with fuel polishing system
    • Underwater lights (x8 units)
    • Full cockpit enclosure
    • Full flybridge enclosure
    • Outdoor kitchen with electric grill and sink
    • Overhead rain shower and pull-out shower at transom steps
    • Wireless phone charging stations throughout the boat
    • Freshwater deck wash in cockpit, flybridge and foredeck
    • Complete safety equipment with life raft, fire extinguishers, flares, etc.
    • Cabin fans throughout the boat
    • Blinds and screens on hatches and electric blinds on windows
    • Flexiteek flooring in cockpit, aft deck and flybridge
    • LED mood lights throughout the boat
    • Bar stools at galley island unit
    • Various interior color moods
  • OPTIONAL EQUIPMENT

    • Scuba package with electric dive compressor and 6 scuba tanks in dedicated storage compartment
    • Satellite communication with broadband satellite internet connection
    • Satellite TV system
    • AB JET 465XP tender package
    • TV on electric fold down lift in ceiling panels above beds
    • Parallel hybrid propulsion system
    • Oscar collision avoidance system
    • Wide range of possible customization
  • OPTIONAL SERVICES

    • In-house build finance
    • Worldwide delivery and recommissioning
    • Owner’s training and yacht maintenance packages
